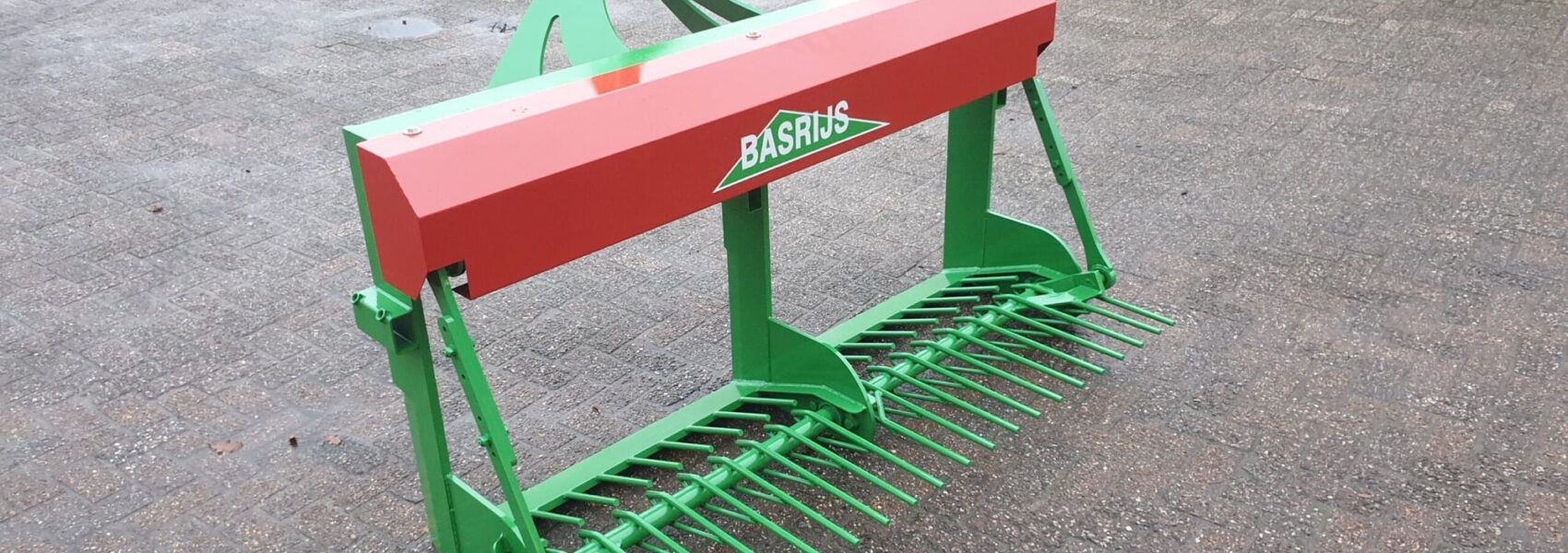

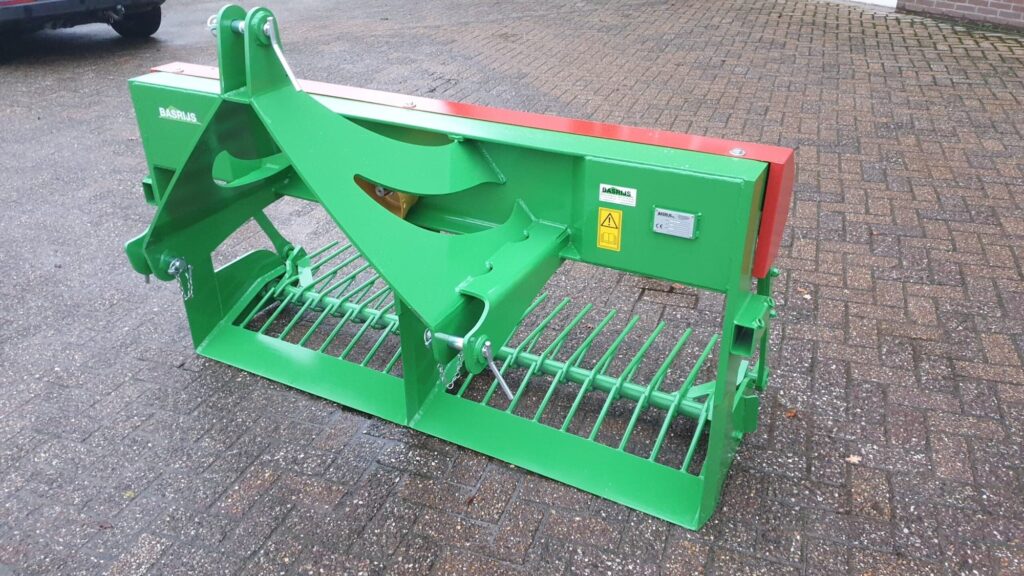

Vibrating Plant Lifter BRS

The vibrating plant lifter BRS is suitable for lifting all kinds of crops such as leeks, carrots, strawberry plants, nursery and bulbous plants etc.

General Specifications

Passage above the plant lifter blade 700 mm
Working speed 300 m/hour

Optional

  • Coulter discs
  • Depth wheels
  • Other working widths on request

Common Configurations

Model Rodebreite Number of vibrating grates Vibrating blade Weight Linkage Power requirement PTO shaft
BRS\E135 1350 mm 1 No 250 kg 3-Point linkage cat. 2 50 hp 540 rpm
BRS\D135 1350 mm 2 No 250 kg 3-Point linkage cat. 2 50 hp 540 rpm
BRS\BE135 1350 mm 1 Yes 250 kg 3-Point linkage cat. 2 50 hp 540 rpm
