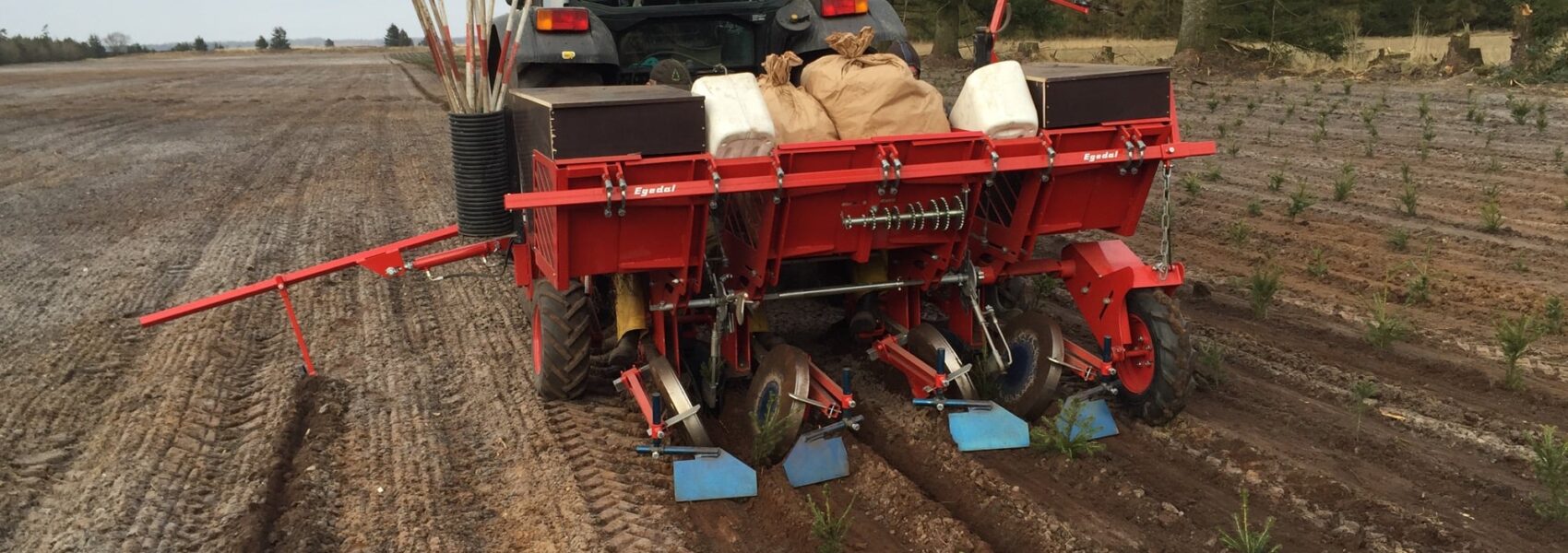

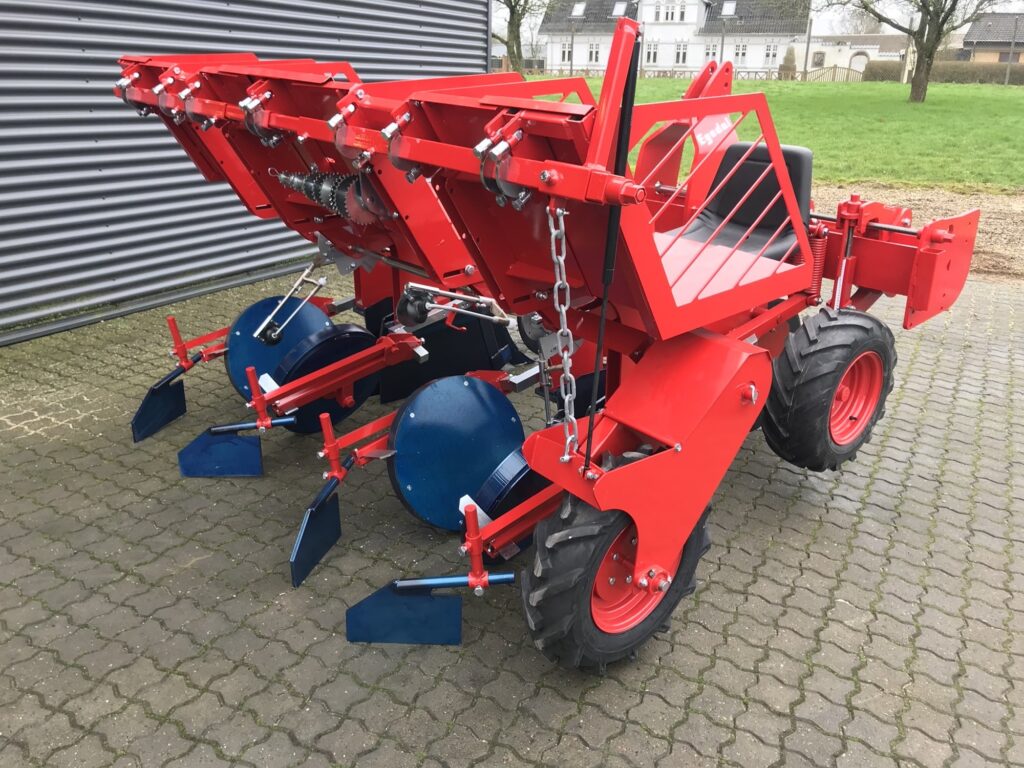

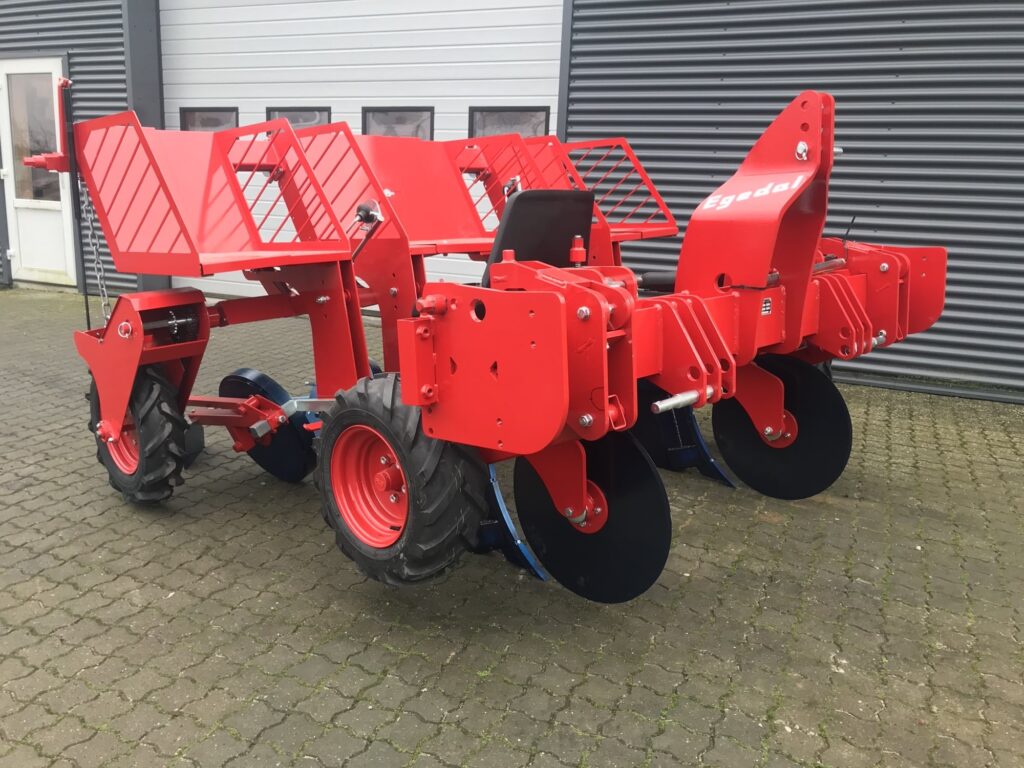

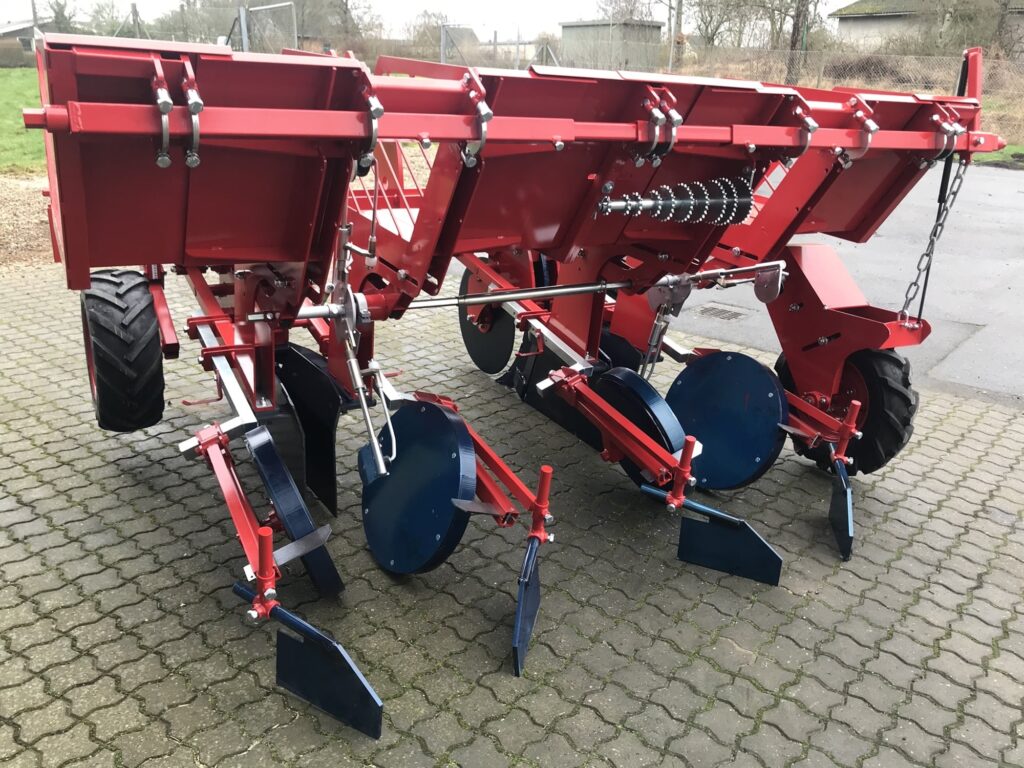

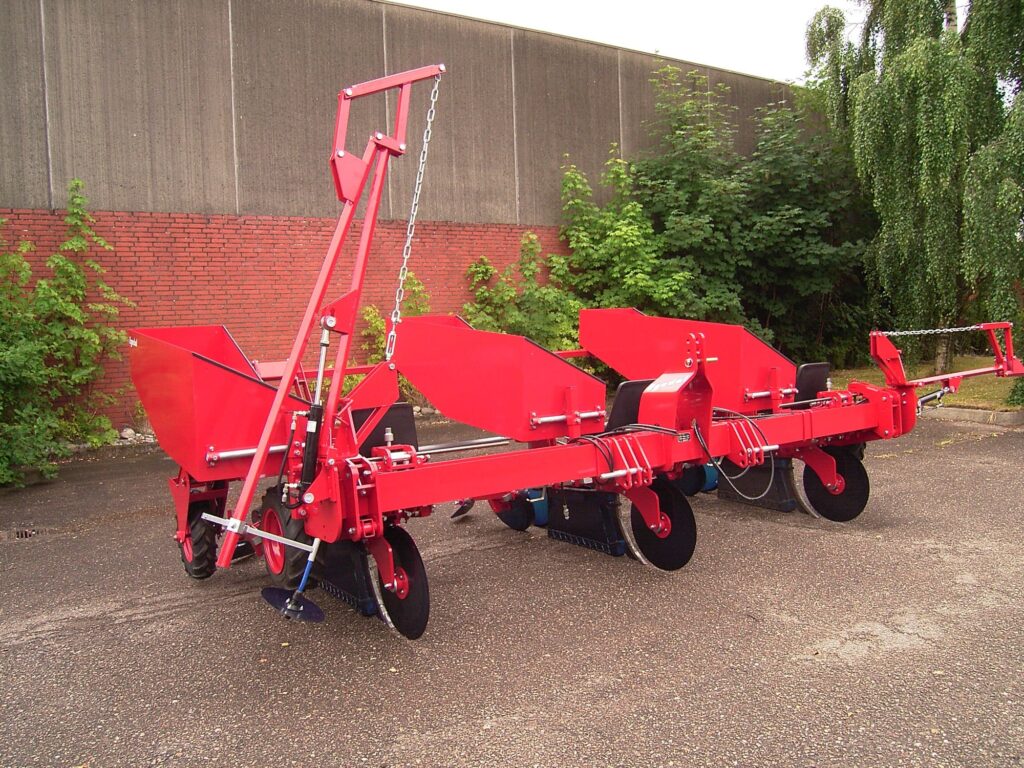

Transplanter Type K
- Versatile for a wide range of applications
- Flexible row planting
- Precise planting distance
- High capacity and ergonomic design
A high-capacity planter designed for planting Christmas tree crops, afforestation, windbreaks, fruit trees, and more. Built for maximum comfort with planting wheels, it offers an ergonomic working position and precise planting distance.
Features quick row spacing adjustment with a spindle and adjustable planting distance from 60-160 cm via a gear wheel. Equipped with a roller disc, adjustable planting share, and spring-loaded large pressure wheels.
Technical Data
| Rows | Row Spacing | Plant Spacing | Track Width | Weight | Power Requirement | Capacity | GPS Ready |
|---|---|---|---|---|---|---|---|
| 1 row | 60 - 160 cm | variable | 1200 kg | from 45 Kw | approx. 1200-2000 plants/hour | Yes | |
| 2 rows | 90 - 165 cm | 60 - 160 cm | variable | 1800 kg | from 70 Kw | approx. 2400-4000 plants/hour | Yes |
| 3 Rows | 90 - 130 cm | 60 - 160 cm | variable | 2400 kg | from 80 Kw | approx. 3600-6000 plants/hour | Yes |

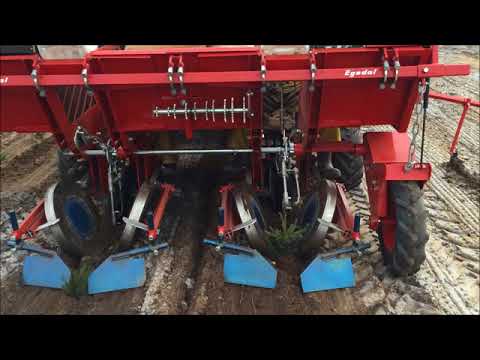

Media
