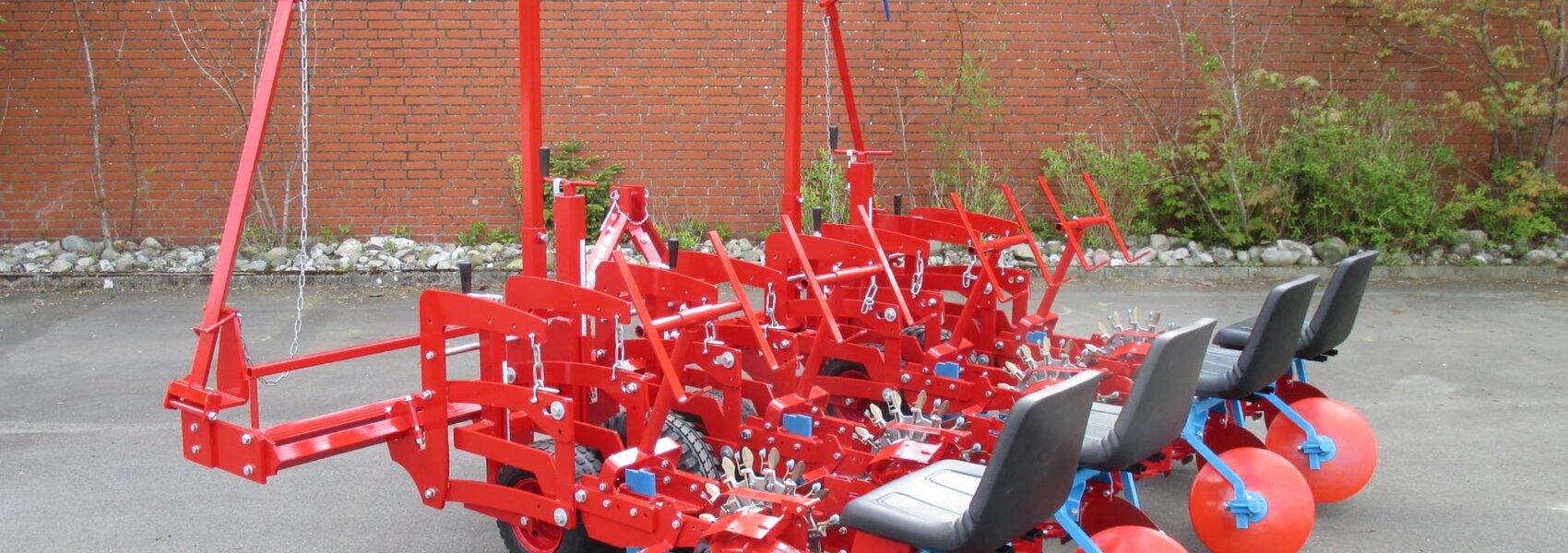

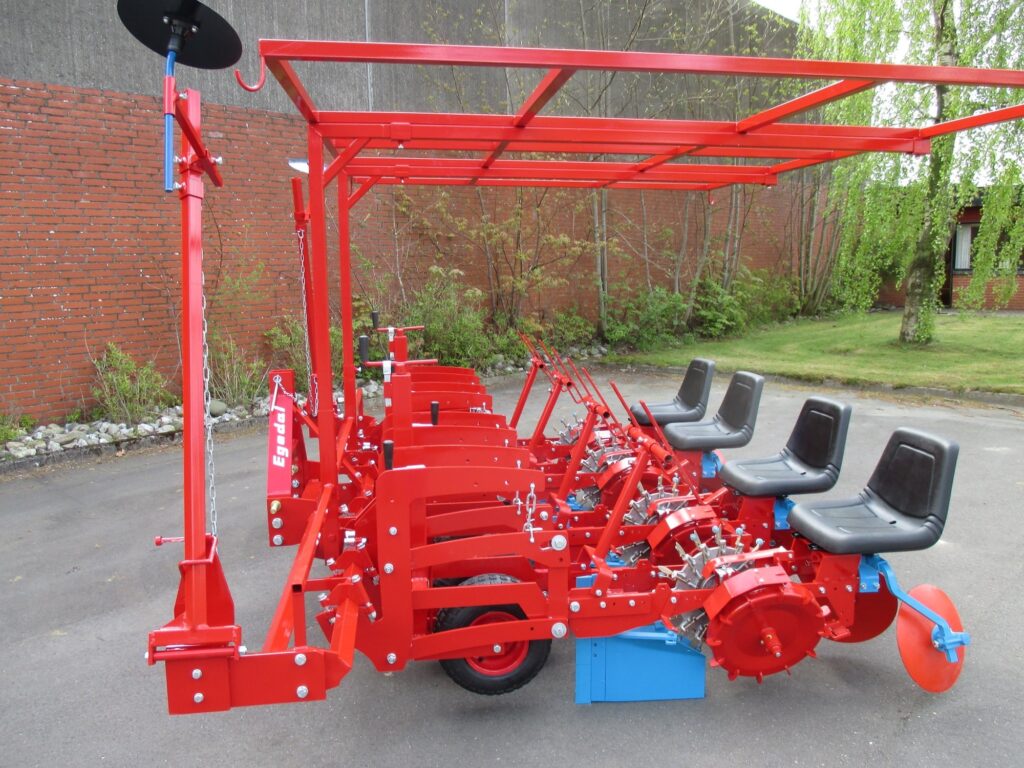

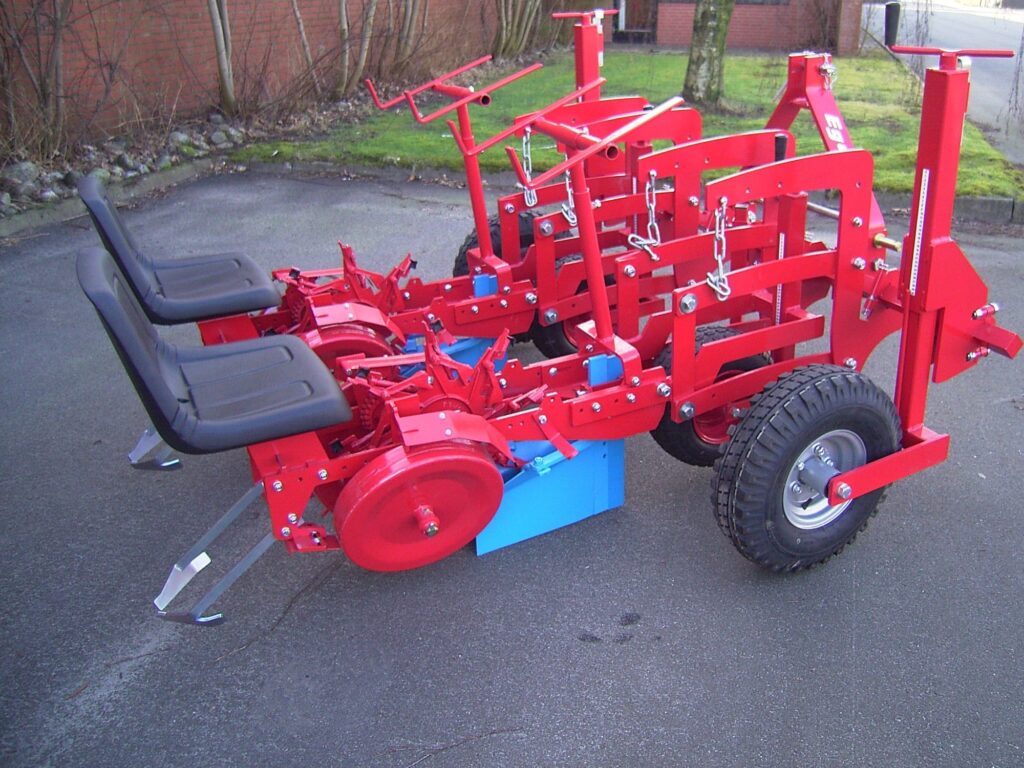

Transplanter Type CP
- Universal planting for diverse plant types
- Parallelogram-suspended planting units
- Adjustable planting depth
- Standard equipment for efficient operation
A versatile planter suitable for planting various types of plants, particularly effective for bare-root plants.
The Type CP is a simple and flexible planter equipped with rubber disc planting wheels as standard but can be fitted with different types of planting wheels depending on the plant type.

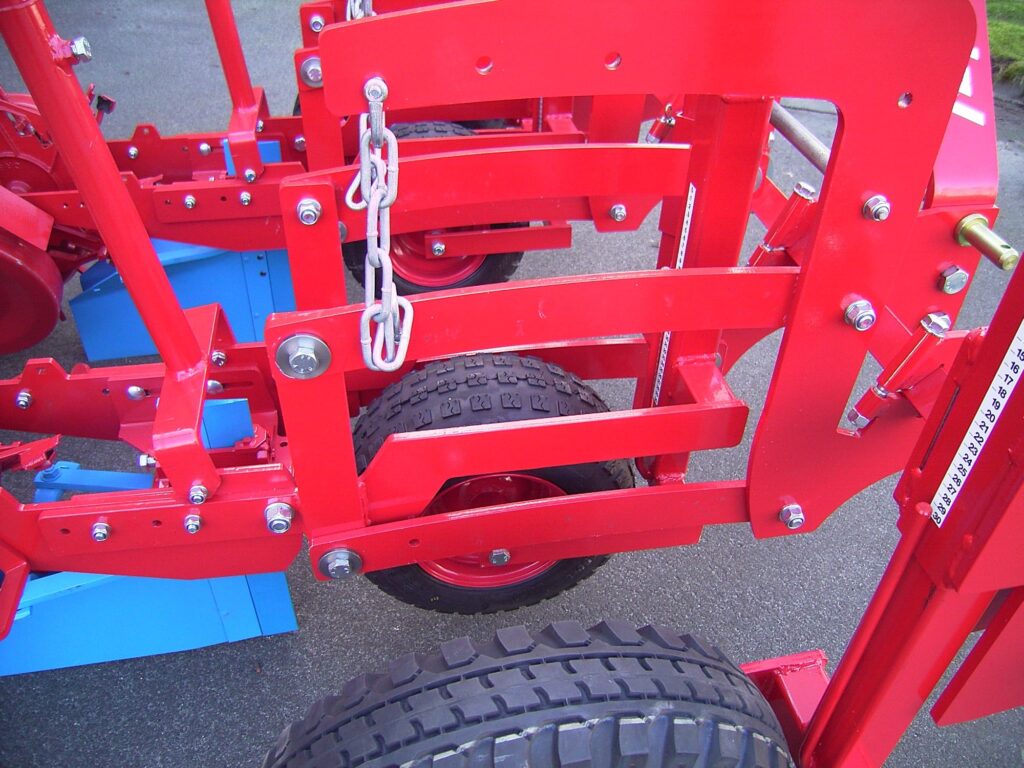

It includes parallelogram-suspended planting units with depth wheels and offers a wide range of accessories.
Technical Data
| Rows | Row Spacing | Track Width | Weight | Power Requirement |
|---|---|---|---|---|
| 1 row | - | Variable | 280 kg | From 25 Kw |
| 2 rows | min. 500 mm | Variable | 330 kg | From 30 Kw |
| 3 rows | min. 500 mm | Variable | 495 kg | From 40 Kw |
| 4 rows | min. 500 mm | Variable | 660 kg | From 50Kw |
