Planting Wheel
- Automatic gripping mechanism
- Consistent planting distance
- Efficient furrow closure
- Versatile compatibility

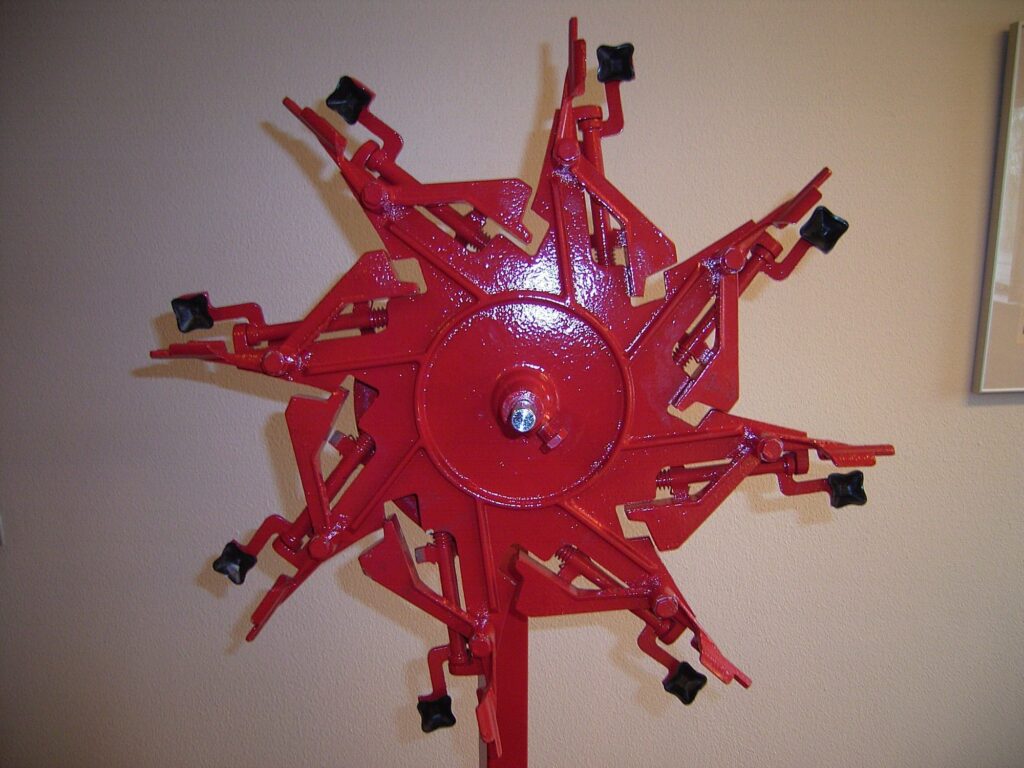

The gripper opens automatically and closes with light manual pressure when the operator places the plant in the gripper. The planting wheel then positions the plant in the furrow. Once the plant is placed, the gripper automatically releases it, and the furrow is closed simultaneously using the two pressure wheels.
Compatible with the following machines:
- Planter Type C
- Planter Type CP
- Planter Type MT
- Planter Type MTH
- Planter Type M
- Planter Type MS
Technical Data
| Type | Plant spacing | Suitable for |
|---|---|---|

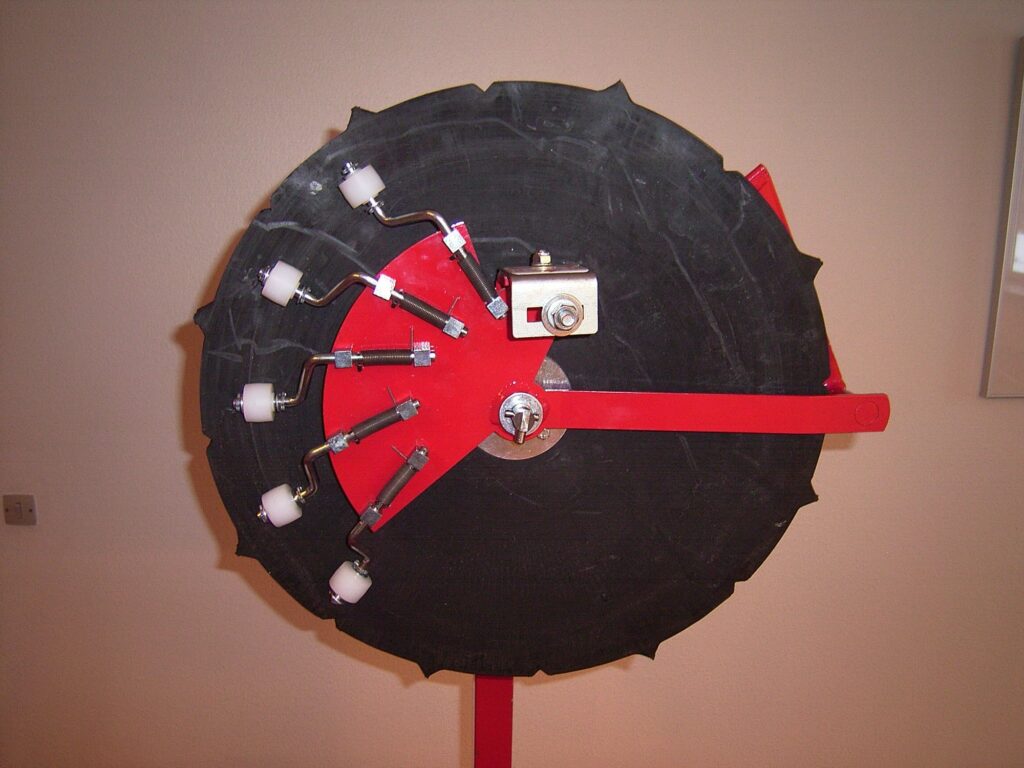

| Rubber disc plant wheel | All | type C-CP-MT-MTH-M-M-MS |
| 8 grippers | 26-28-34 cm | type C-CP-MT-MTH-M-M-MS |
| 16 grippers | 13-15-17 cm | type C-CP-MT-MTH-M-M-MS |
| 24 grippers | 8.5-9.5-11 cm (6.5-7.5-8.5 cm) | type C-CP-MT-MTH-M-M-MS |
| 36 grippers | 6-6.5-7.5 cm (4.5-5-6 cm) | type C-CP-MT-MTH-M-M-MS |
