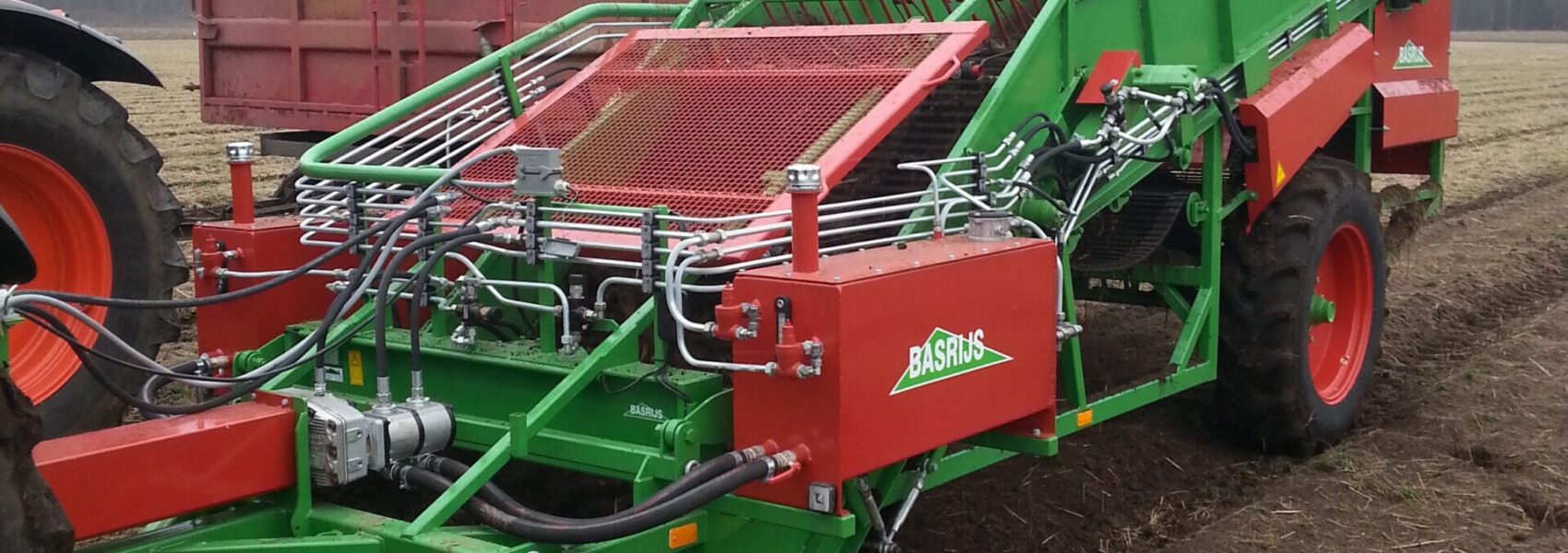

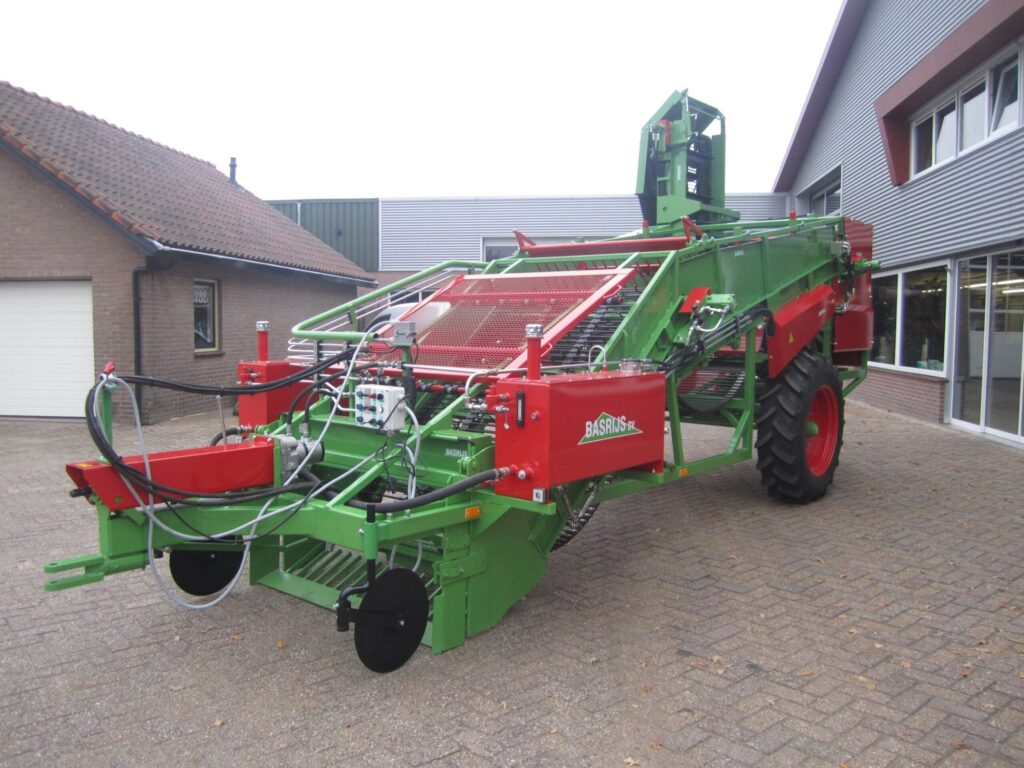

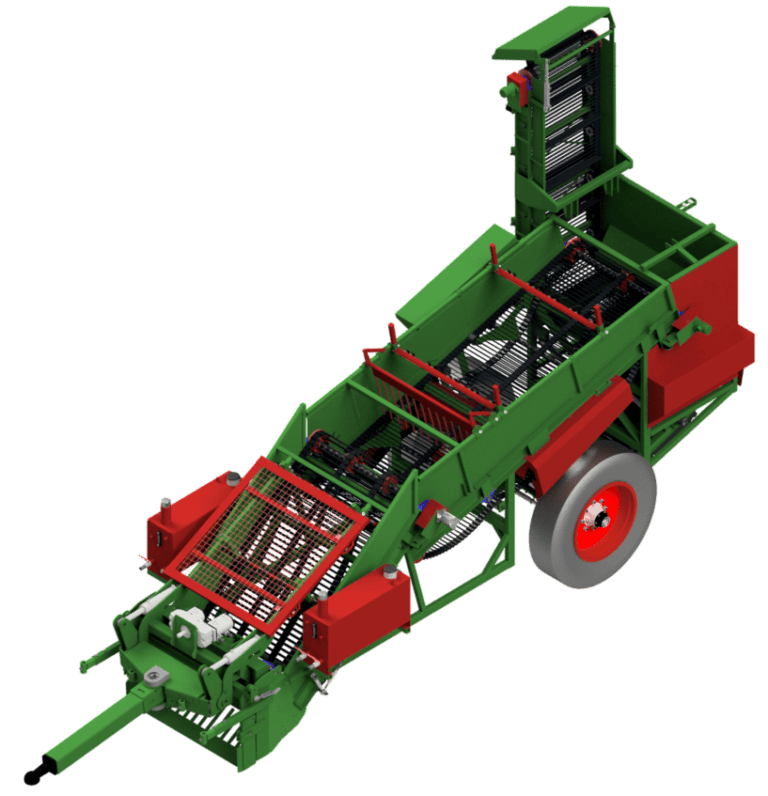

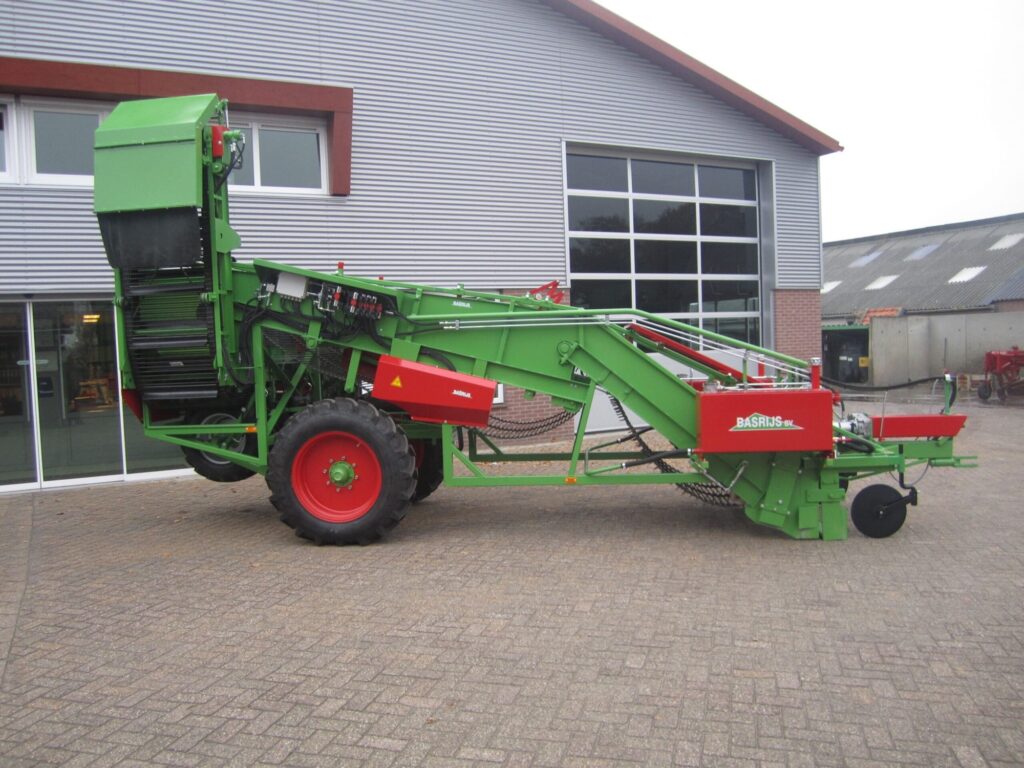

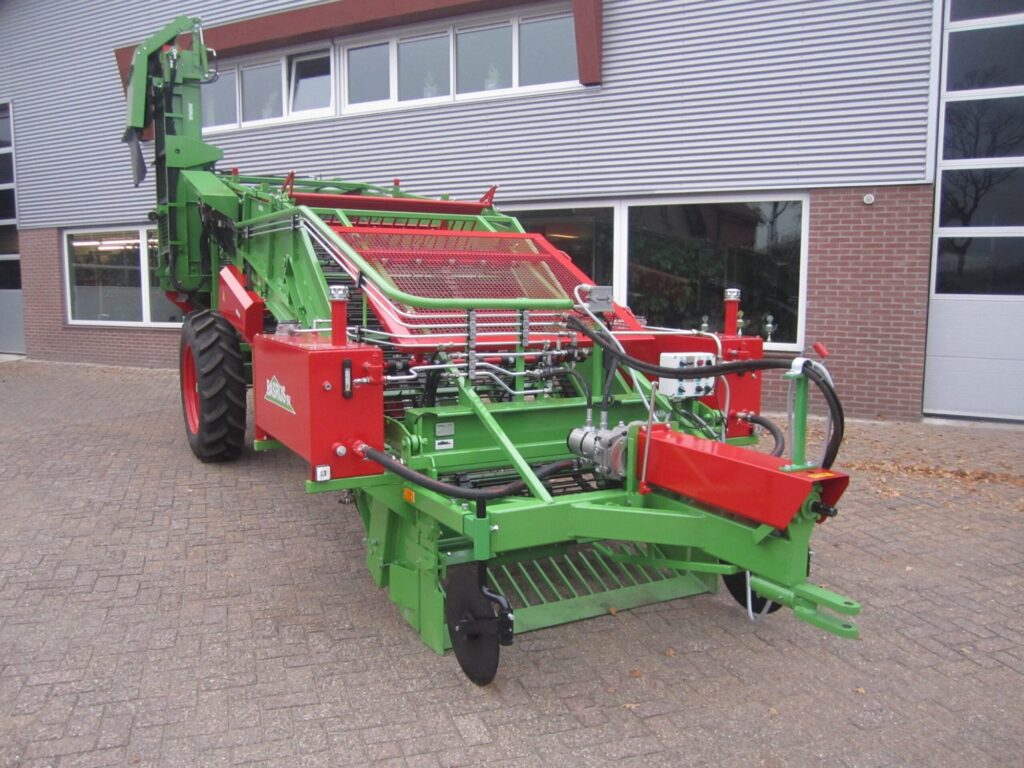

Plant Harvester BRP/ML

The plant harvester BRP/ML is suitable for digging up strawberry plants, asparagus plants, perennials and certain types of nursery plants.

General Specifications

Pinned belt length 2300 mm
Sieve belt length 3300 mm
Width of side discharge belt 800 mm
Passage under side discharge belt 2 m
Capacity 500 to 1500 metres per hour

Optional

  • 3-point jack with K80 ball
  • Coulter discs
  • Vibrating harvest blade
  • Rotating beater in pinned sieve belt
  • Rotor head divider on penstock
  • Pressure wheels or driven pressure wheels
  • Cameras
  • Work lamps

Common Configurations

Model Rodebreite Tyres Track width Linkage Weight Power requirement PTO shaft Hydraulics Electrical connection
BRP\ML135 1350 mm 340/85R28 1600 mm K80 ball 3400 kg 75 hp 540 rpm 1 (single) acting valve, 20 l/min 3-pin 12 VDC connector (ISO 12369) & 7-pin lighting plug (ISO 1724)
BRP\ML150 1500 mm 340/85R28 1600 mm K80 ball 3500 kg 80 hp 540 rpm 1 (single) acting valve, 20 l/min 3-pin 12 VDC connector (ISO 12369) & 7-pin lighting plug (ISO 1724)
