Mechanical Intercrop Seeder (DRILLBOX)
- Simple and fast quantity adjustment using a control dial or lever
- High welded corners guarantee precise application on slopes. The calibration trough is integrated in the lid
- Exact metering using a push-wheel system
DRILLBOX = 34 cm baffle plate distance = 8 or 9 outlets
MECHANICBOX = 17 cm baffle plate distance = 17 outlets

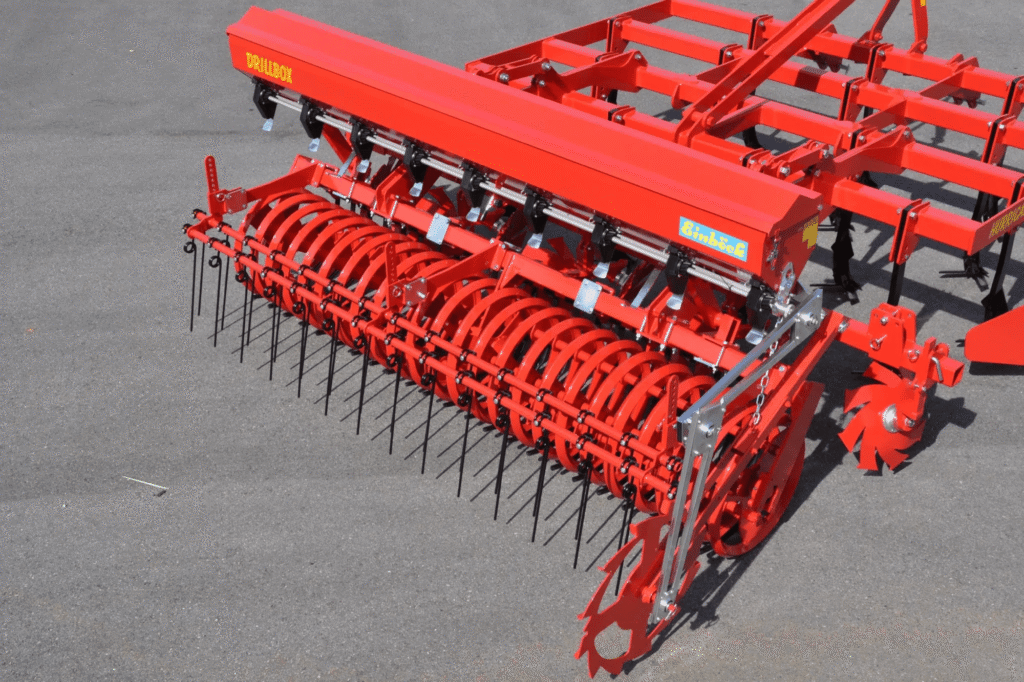

The DRILLBOX can be mounted on any machine (cultivators, discs, harrows, etc).
With this machine you can seed all sorts of intercrops and seed mixtures, from approximately 5 kg/ha.
The specially designed distribution plates assure an even distribution of the seeds. The seeder is activated through a large trail wheel with actuation cartridge.
High gusset plates inside the tank ensure exact seeding in hilly terrain.
The DRILLBOX is suitable for machines with high working speed (cultivator, disc harrows etc) and from approximately 70 cm mounting height.
Advantages

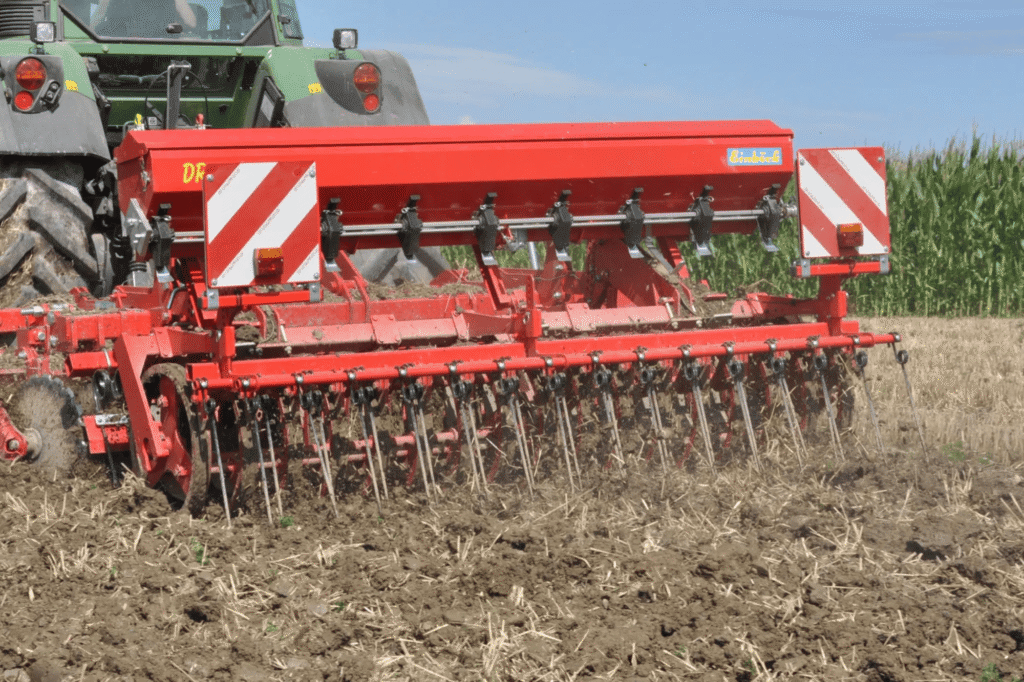

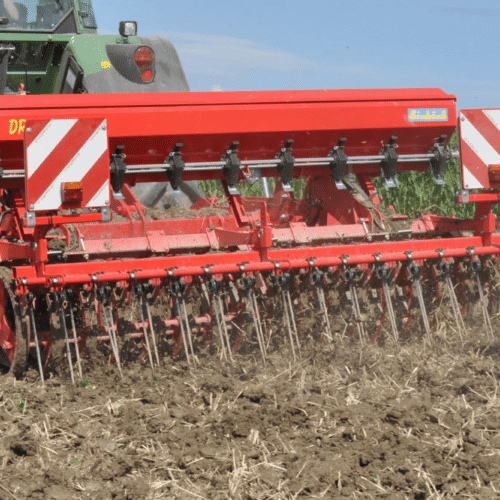

Economical and proven

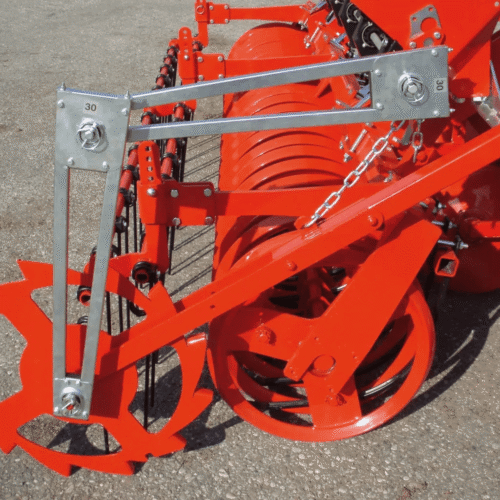

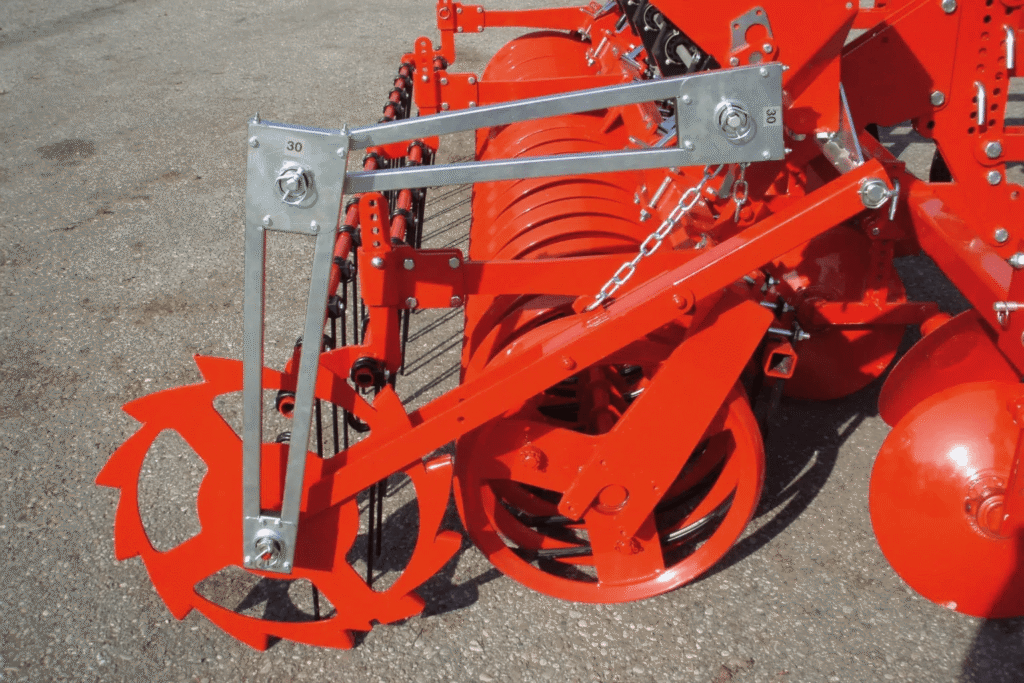

Exact seeding

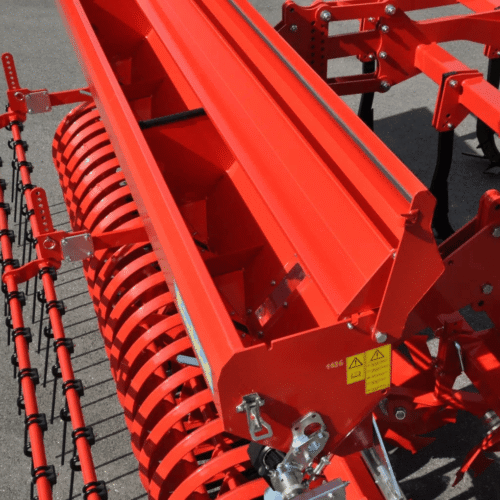

High gusset plates
Mounting consoles

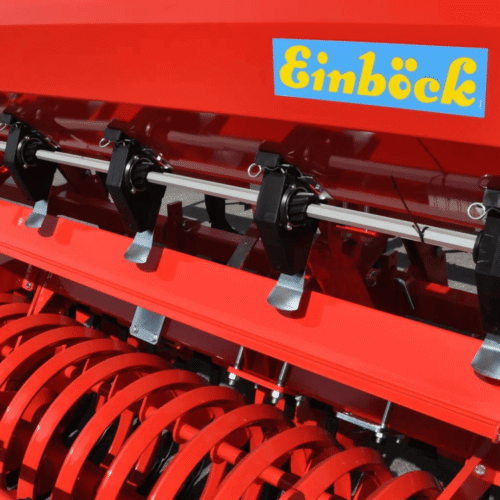

Specially shaped distribution deflector plates
Technical Data
- Mounting consoles
- Ideal calibration pan
Options
- Stiring shaft
- Ground drive via the axle of the rear roller
- Additional bottom drive wheel without actuation cartridge
- Additional mounting console (2 holders)
