Grassland Seeder (PNEUMATICSTAR-SR-STI)
- Reseeding and underseeding with P-BOX-STI
- Stimulating the tillering of the grass turf
- For ideal grassland quality
- Adapt very good to the soil surface
- Yield increase
- Weed out weeds like stalked meadow grass

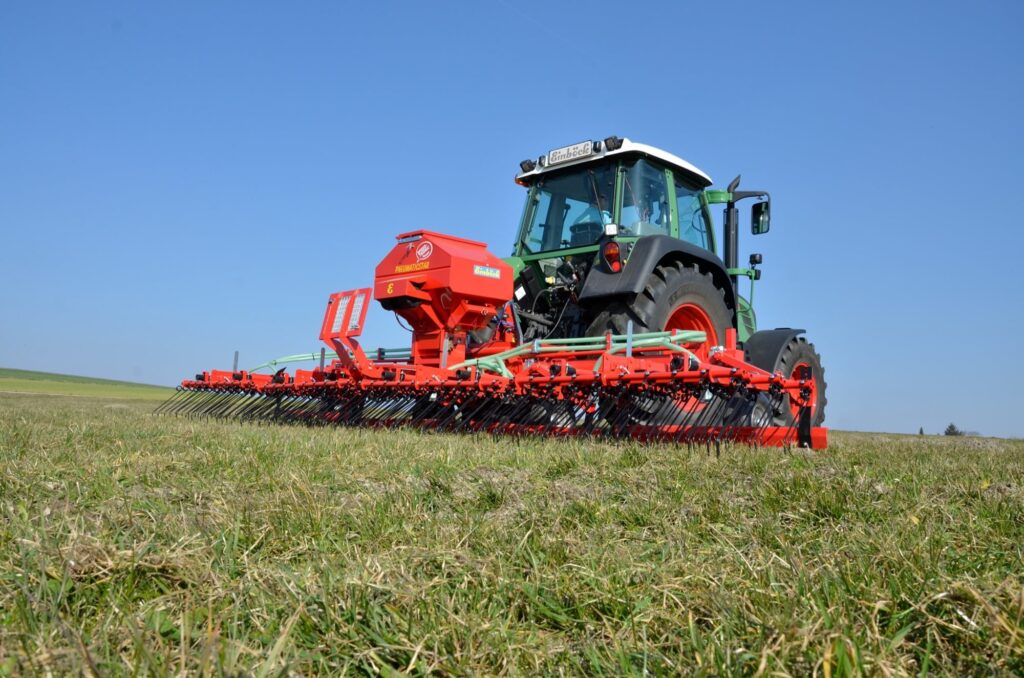

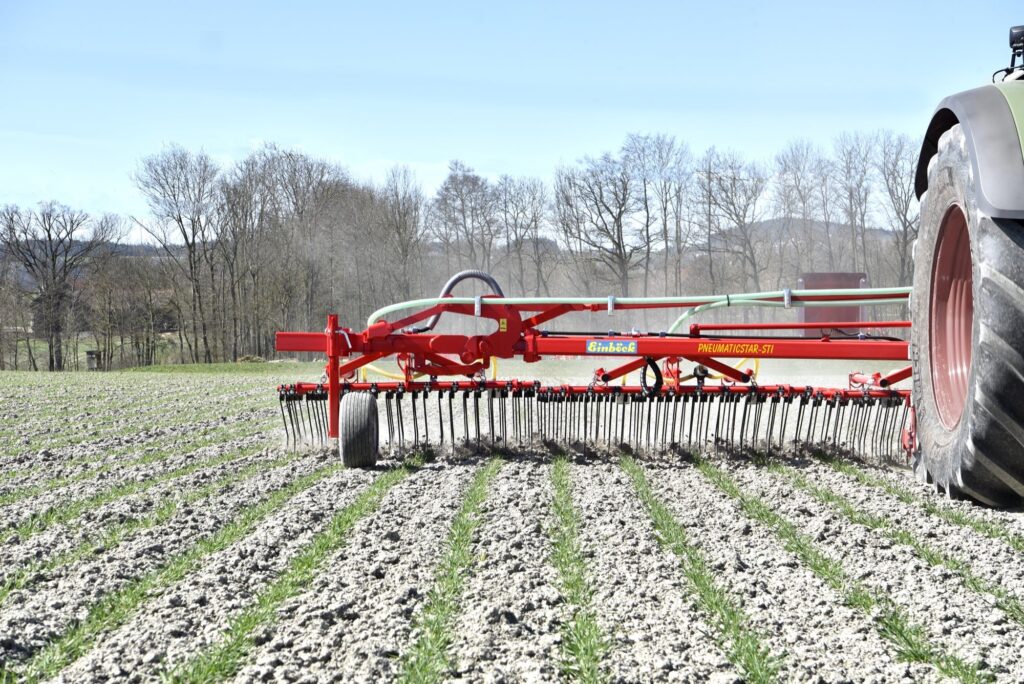

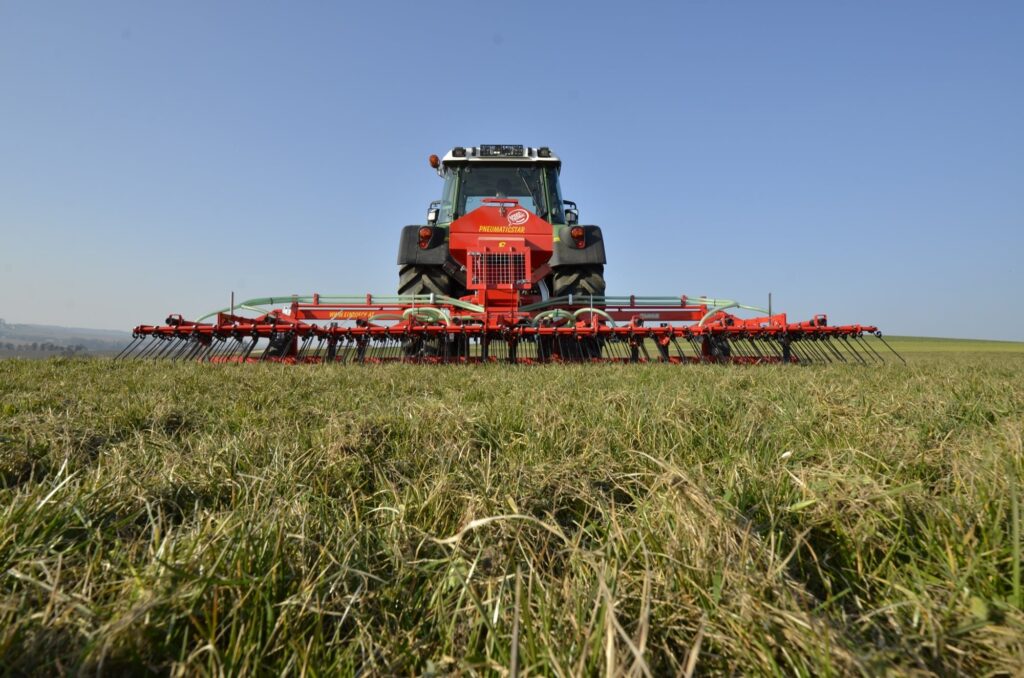

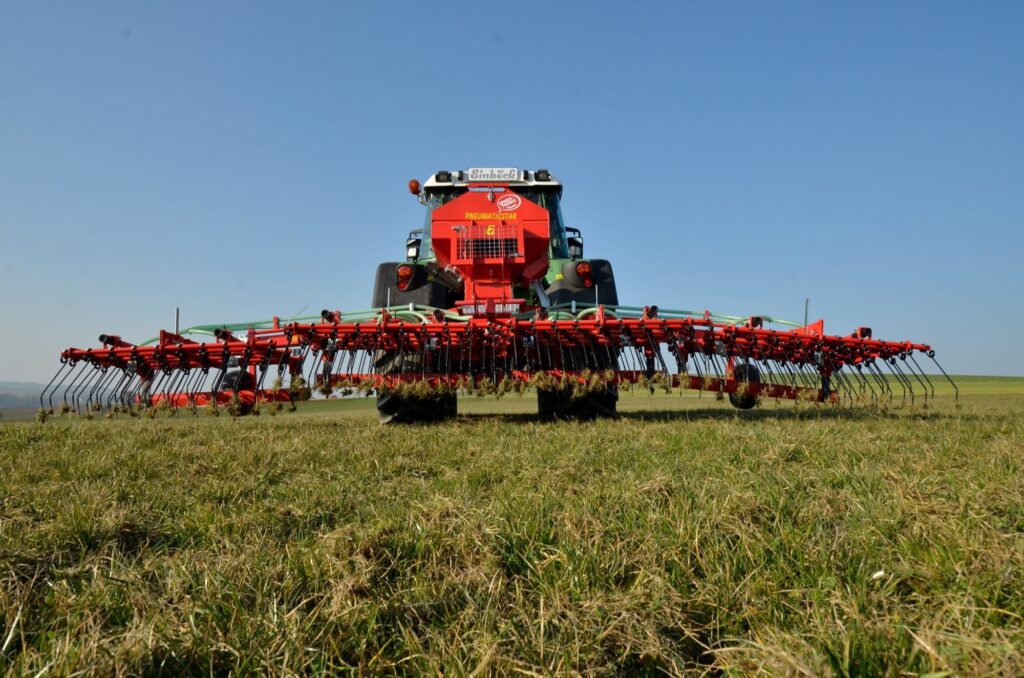

The PNEUMATICSTAR-SR-STI is designed for grassland care, seeding, under-seeding and re-seeding. The PNEUMATICSTAR-SR-STI utilises an electronic drive system, operated by a magnetic wheel sensor fitted to a land wheel.

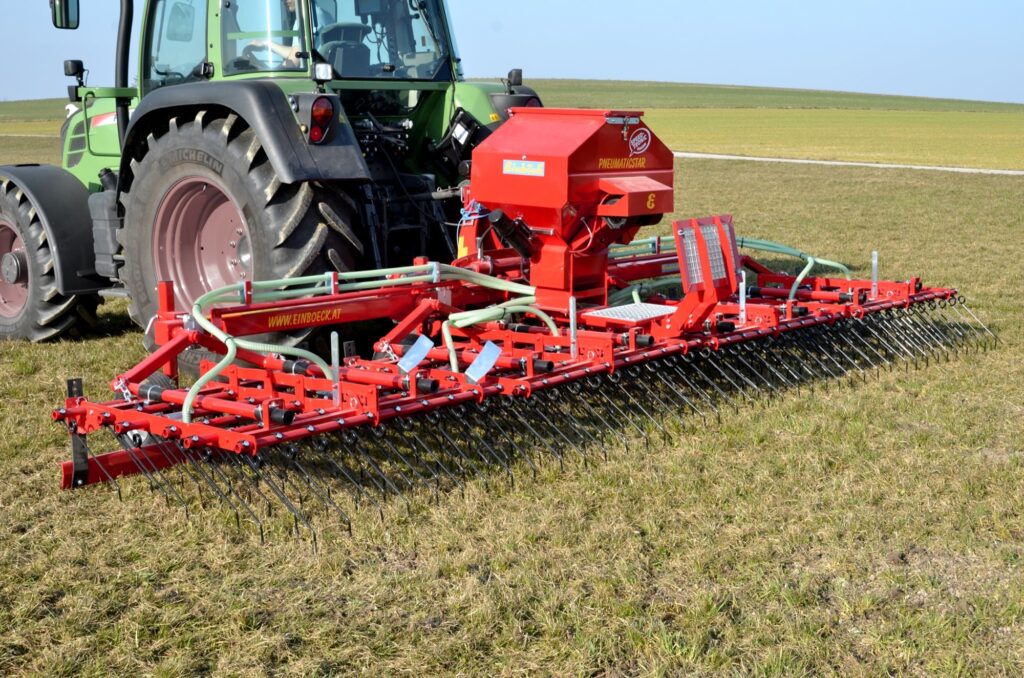

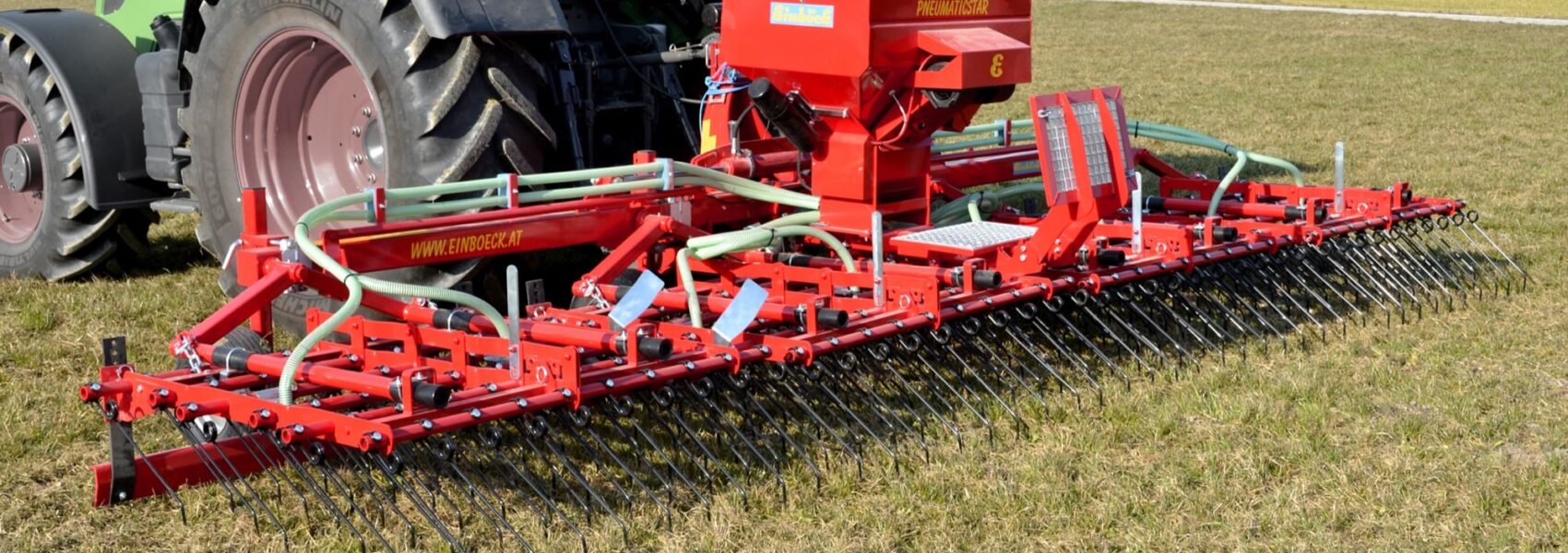

The PNEUMATICSTAR-SR-STI has a heavy, robust frame and is available as a rigid or hydraulic folding machine depending on working width. Using high-quality materials and through the special, solid construction, you can put additional pressure on the 6-row tine sections in hard soil conditions.

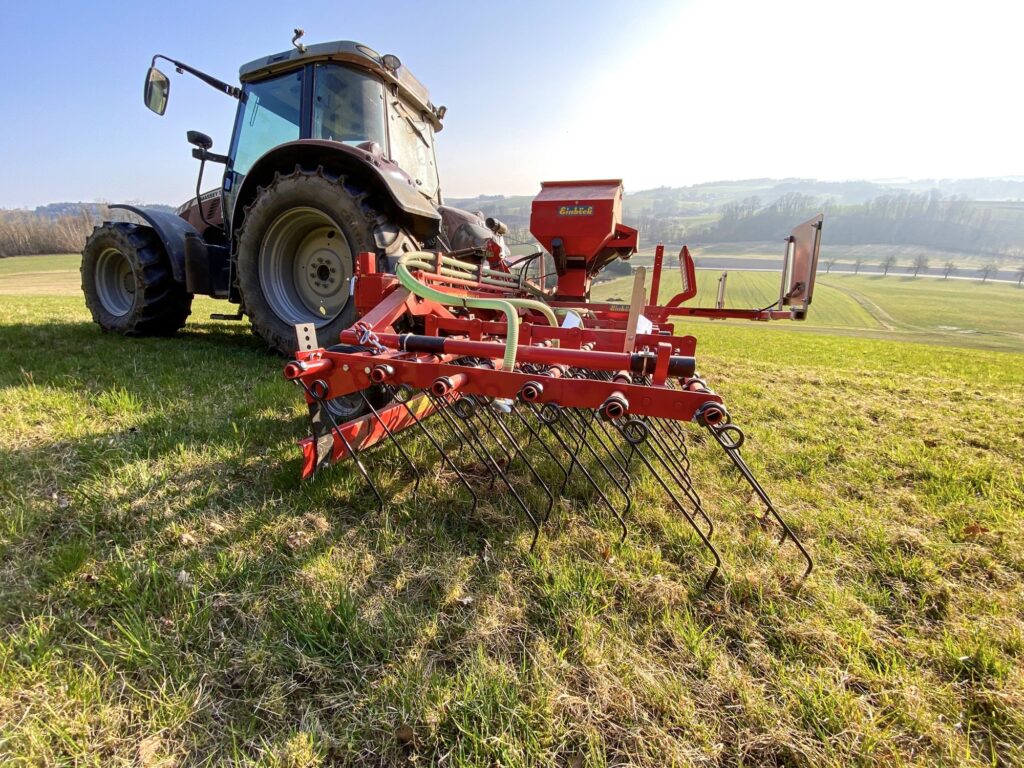

The PNEUMATICSTAR-SR-STI works the grassland with spring tines, loosening and aerating the turf. The weeds in the upper layer of soil are rooted out, giving important grasses and herbs more light and space to grow.
High productivity in combination with low power consumption reinforces the usage of the PNEUMATCSTAR-SR. The tines are designed for long life and can be adjusted to suit the working angle. Due to their design, they maintain contact with the grassland even on rough terrain.

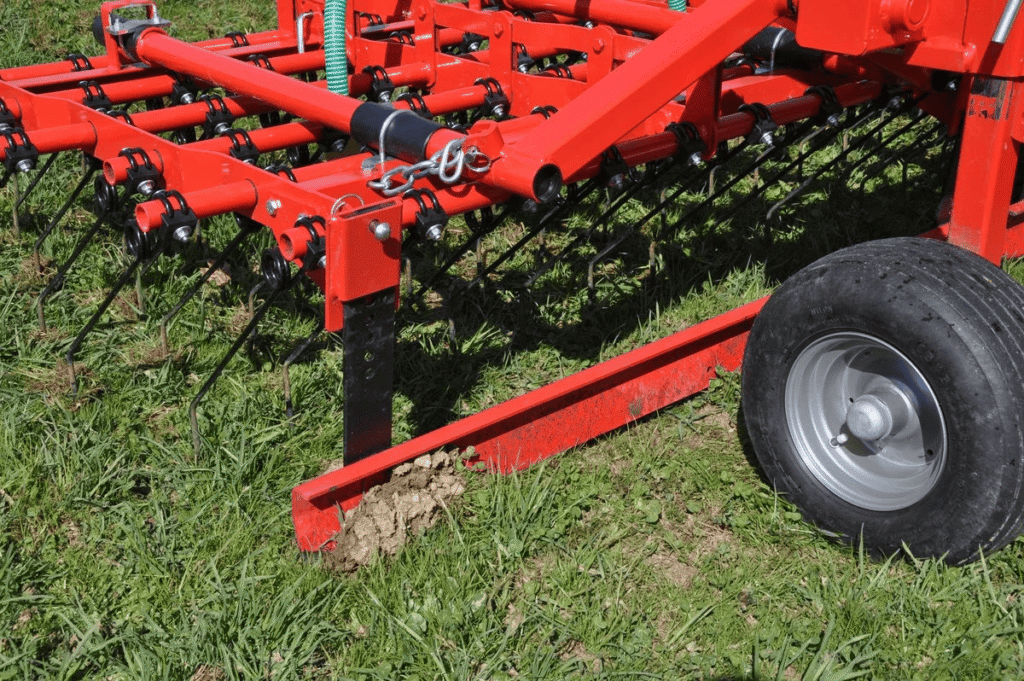

The PNEUMATICSTAR-SR-STI can be equipped with levelling boards for the distribution and levelling of molehills. The support wheels run in front of the weeder sections and ensure accurate guidance. The PNEUMATICSTAR-SR-STI is designed with a heavier frame and 10 mm tines for grassland care.
Advantages
Pneumaticstar underseeding reseeding
Pneumaticstar tine position
Pneumaticstar STI stable operation
Pneumaticstar STI no rollers
Pneumaticstar sti drive
Pneumaticstar flexibility of use
Pneumaticstar depth wheels
Pneumaticstar deflectors centrally mounted
Grass manager line spacing
Grass manager 10 mm tines
Technical Data
- Lower links, quick coupling pendular axle (up to 6 m / 19.7 ft.)
- Mounting category CAT I up to 5 m / 16.4 ft. / CAT II from 6 m / 19.7 ft.
- Tines Ø 7 mm, length 490 mm / 19.3″, individually changeable
- Line spacing 2,5 cm / 1″
- Tine tube with anti-rotation device
- Parking support (from 3 m / 9.8 ft. working width)
- Pneumatic seeder P-BOX-STI with electric drive of the stirring shaft and separate seeding roller section per hose
- Electric fan 12 volts – up to 6 m / 19.7 ft. working width
- Electric cable with large diameter and control unit – up to 6 m / 19.7 ft. working width
- Mechanical fan with PTO-shaft – for 9 m / 29.5 ft. and 12 m / 39.4 ft. working width
- One Seeding roller with fine and one with coarse toothing
- Seeding roller can be changed without tools
- Tank made from sheet steel
- Calibration plate + calibration pan
- Tank volume 300 litres with tank inspection glass + drainage opening (for PNEUMATICSTAR 600 NR = 500 l)
- Adjustment of speed of the seeding roller via a ground wheel sensor – automatic switch off at the headland via an upper link sensor
- Specially designed distribution plates with splash guard
- Filling steps
- Transport width ≤ 3 m (9.8 ft.)
Options
- Tines 490 mm / 19.3 long, ø 8 mm / 0.31″

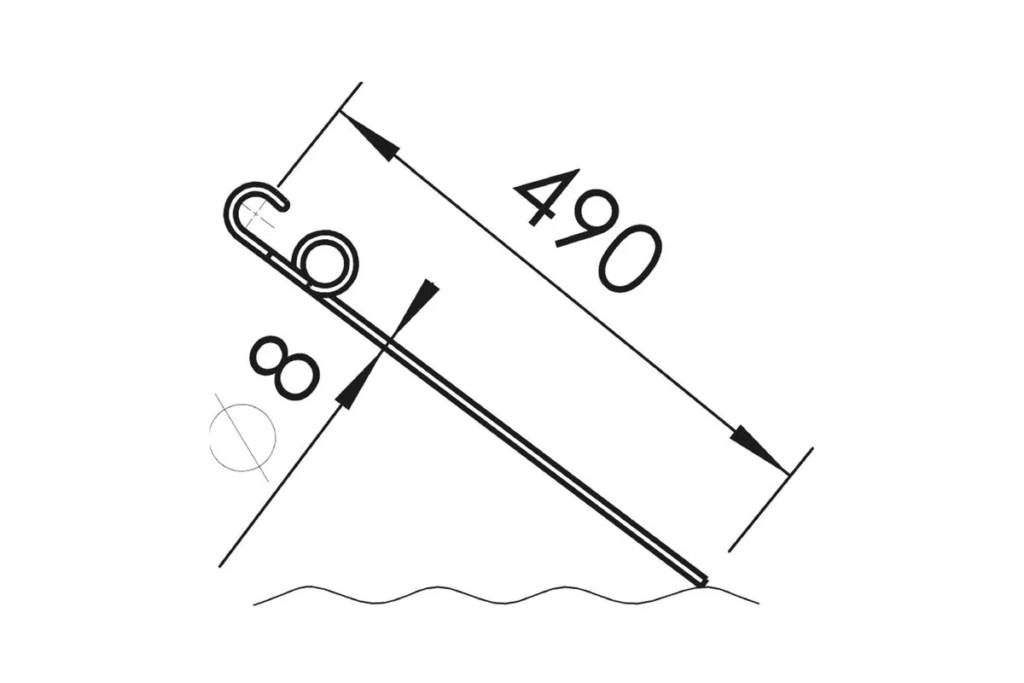

- Tines 490 mm / 19.3 long STRAIGHT, ø 8 mm / 0.31″
- Tines 490 mm / 19.3 long, ø 10 mm / 0.39″ (only for version SR)
- Hydraulic transport lock for shear folding
- Tine loss protection

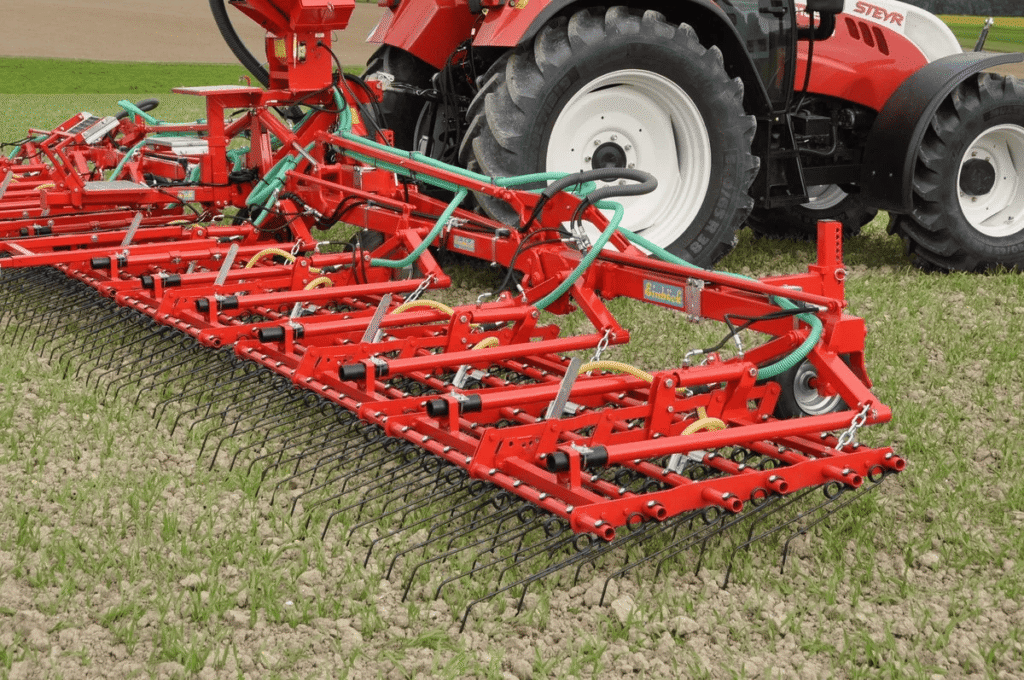

- Hydraulic tine adjustment
- Spring-mounted front levelling plate
- Retaining plate
- Mechanical jogging unit
- Mechanical fan
- Hydraulic fan
- GPS – Sensor instead of ground wheel sensor
- Radar sensor instead of ground wheel sensor
- Extension-kit for area-specific grassland reseeding with the “ProActive Sensor from ISARIA”
- Cable to the 7-pin info plug
- Alarm when seeding box is getting empty
- Calibration button
- Airflow monitoring
- 500 litre tank and retaining plate

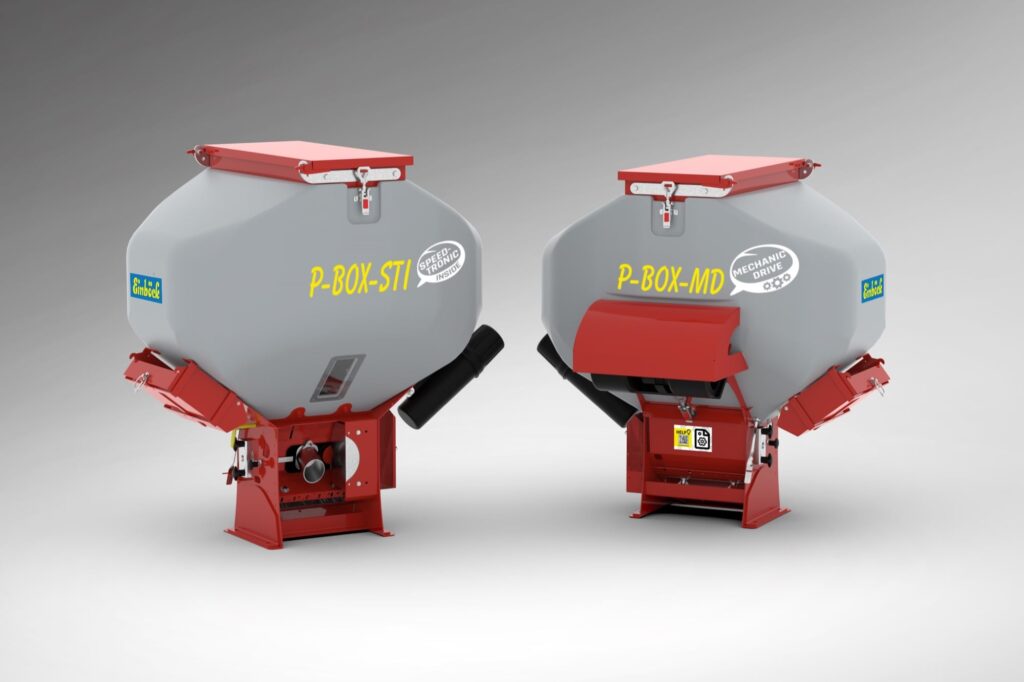

- Plastic tank instead of the standard steel tank
- Deflector plate made from stainless steel

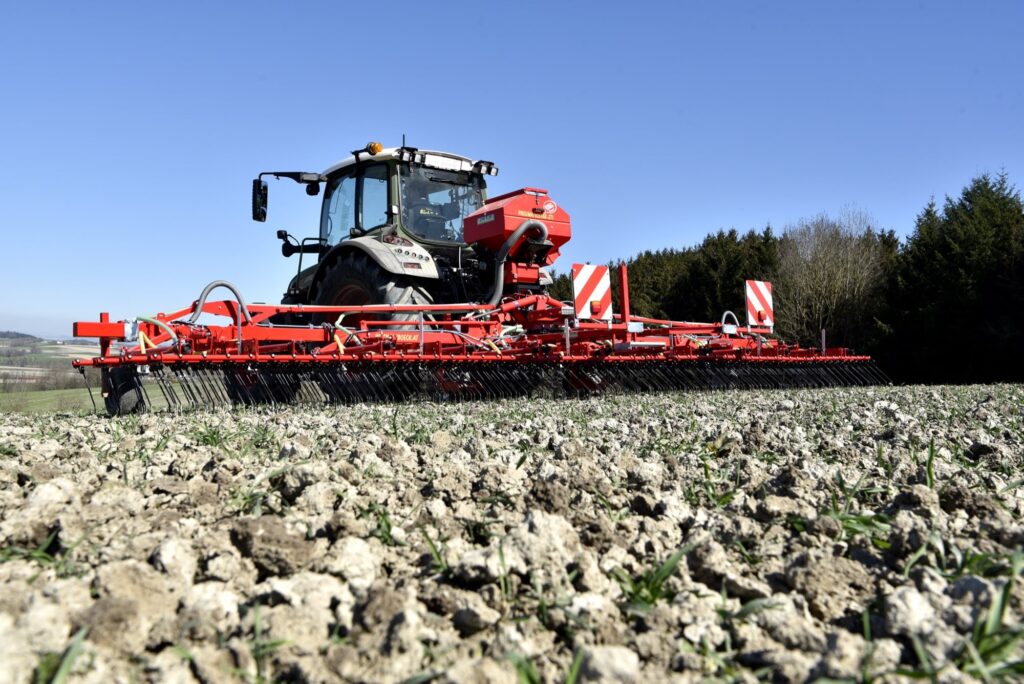

- Warning signs with holder and LED-lights
