Grassland Seeder Grassland Seeder (PNEUMATICSTAR-PRO-MD)
- Hydraulic level control
- Exact application of seeds
- Grooves will be de-thatched
- Extremely solid construction
- Spring mounted levelling plate
- Levelling plate adjusts “on hold

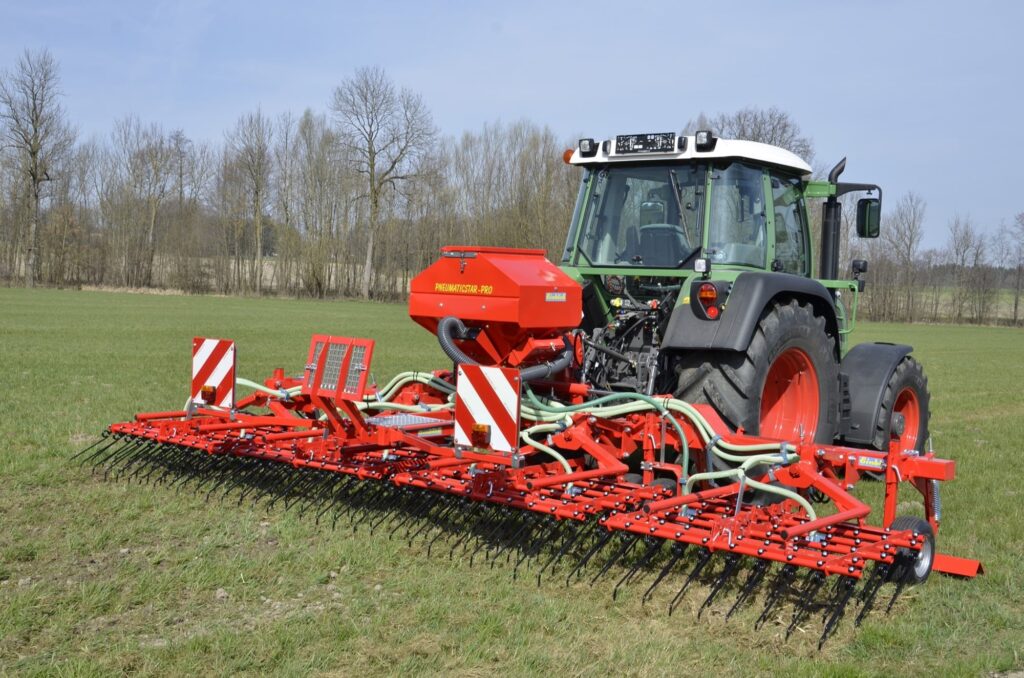

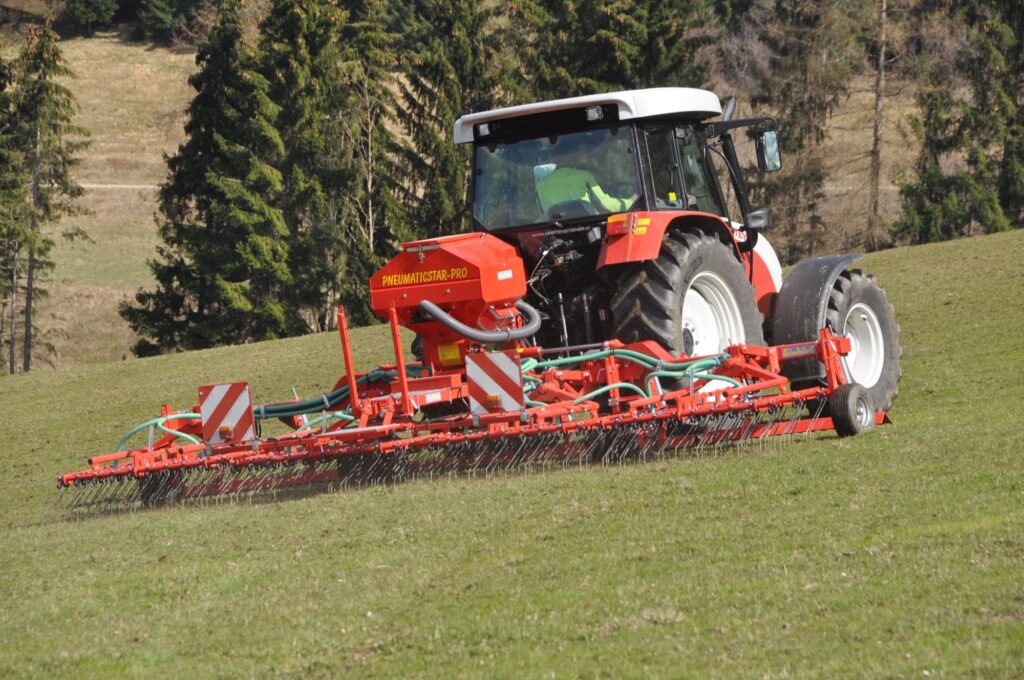

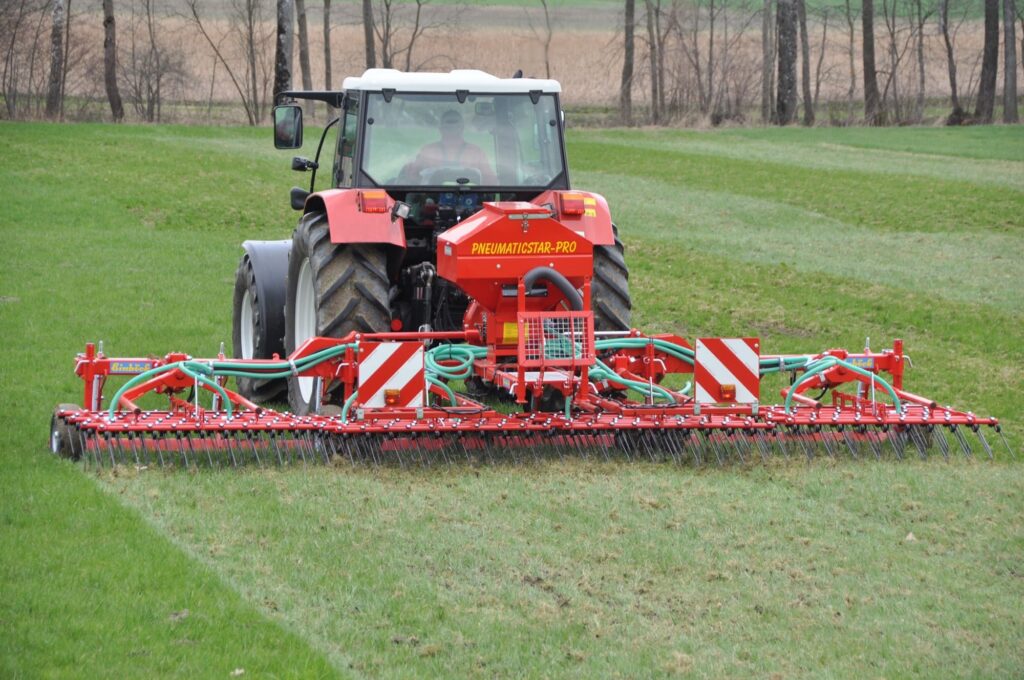

The PNEUMATICSTAR-PRO is professional machine designed for grassland care, seeding, under-seeding and re-seeding. The PNEUMATICSTAR-PRO-MD utilises a mechanical drive system, operated by a robust cable connected to a land wheel. The PNEUMATICSTAR-PRO has an extremely solid, robust frame and is available as a rigid or hydraulic folding machine depending on working width. Using high-quality materials and through the special, solid construction, you can put additional pressure on the 6-row tine sections in hard soil conditions.
The PNEUMATICSTAR-PRO works the grassland with spring tines, loosening and aerating the turf. The weeds in the upper layer of soil are rooted out, giving important grasses and herbs more light and space to grow. High productivity in combination with low power consumption reinforces the usage of the PNEUMATCSTAR-PRO.

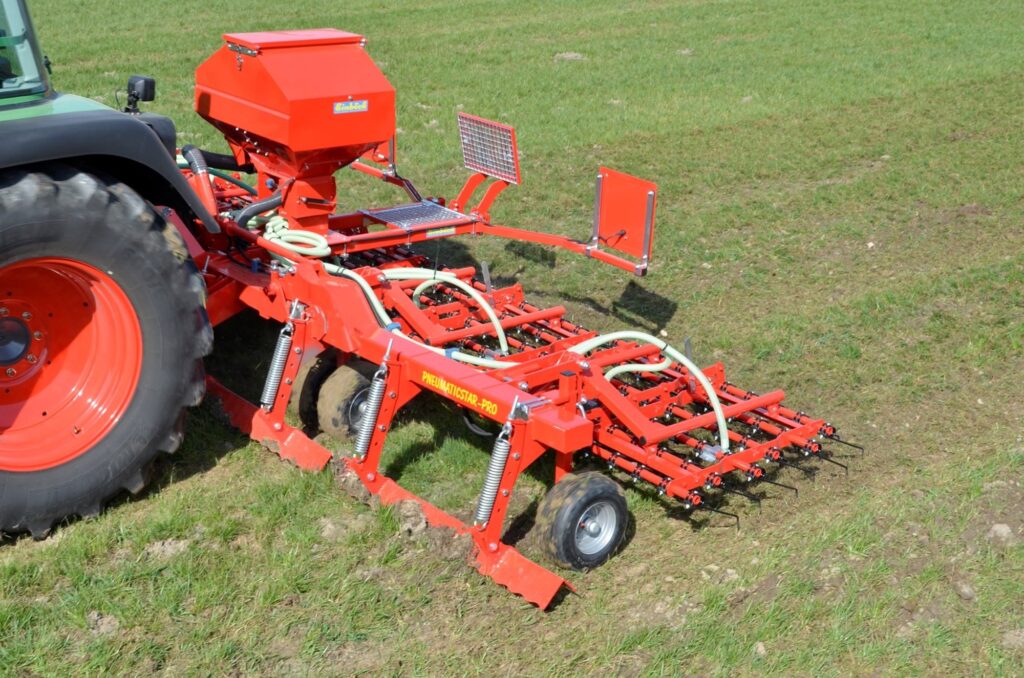

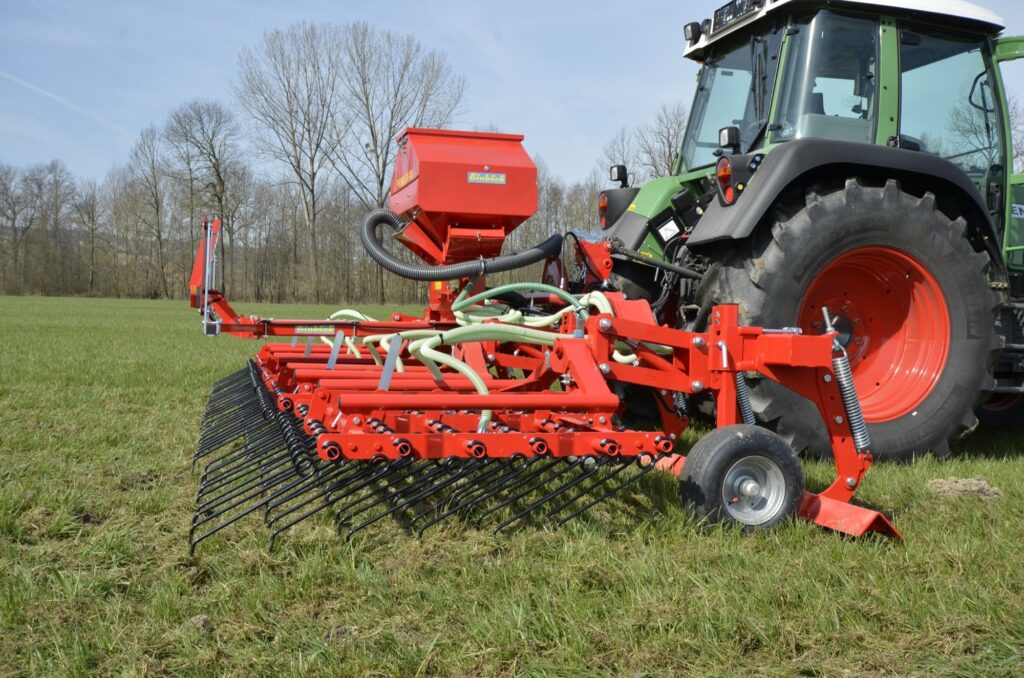

The 10 mm tines are designed for long life and can be adjusted to suit the working angle. Due to their design, they maintain contact with the grassland even on rough terrain. The PNEUMATICSTAR-PRO is made for high working speeds and is very effective. It is equipped with heavy triangular levelling boards for the distribution and levelling of molehills. The support wheels run behind the levelling boards to ensure smooth and accurate guidance. Each section is mounted on a parallelogram, ensuring perfect adaptation to uneven ground and optimal pressure on the sections.
The PNEUMATICTSTAR-PRO is the subsequent, further developed version of the PNEUMATICSTAR, featuring an even more robust frame. It was specifically designed for contractors and large-scale farms.
Advantages

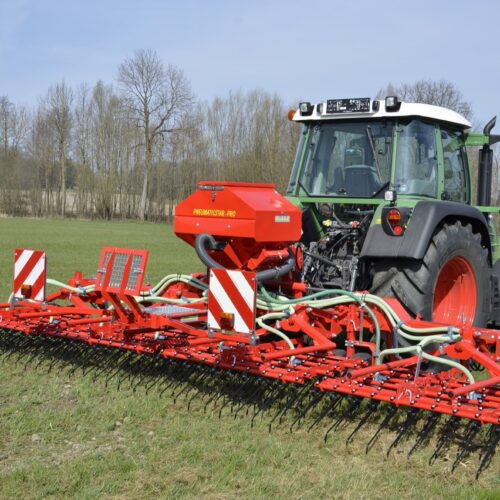

Pneumaticstar PRO-MD no rollers

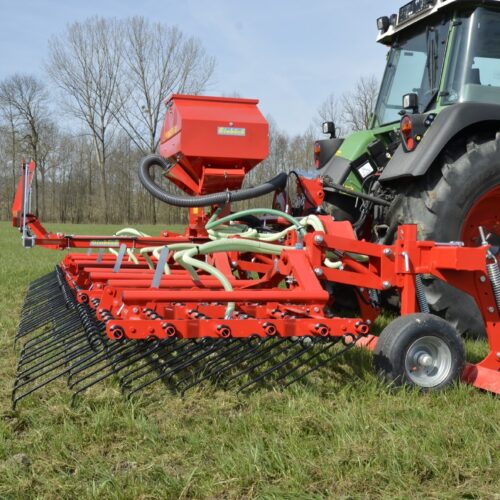

Pneumaticstar PRO-MD guided weeder sections

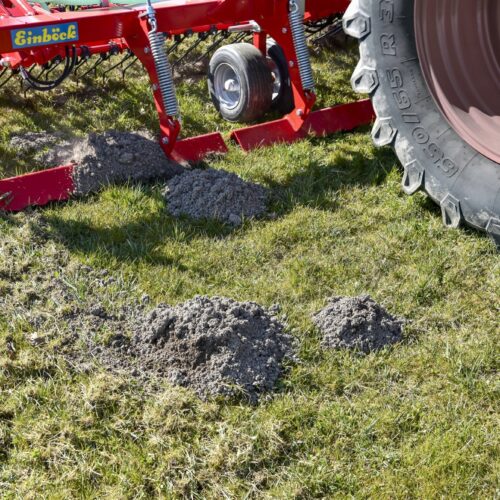

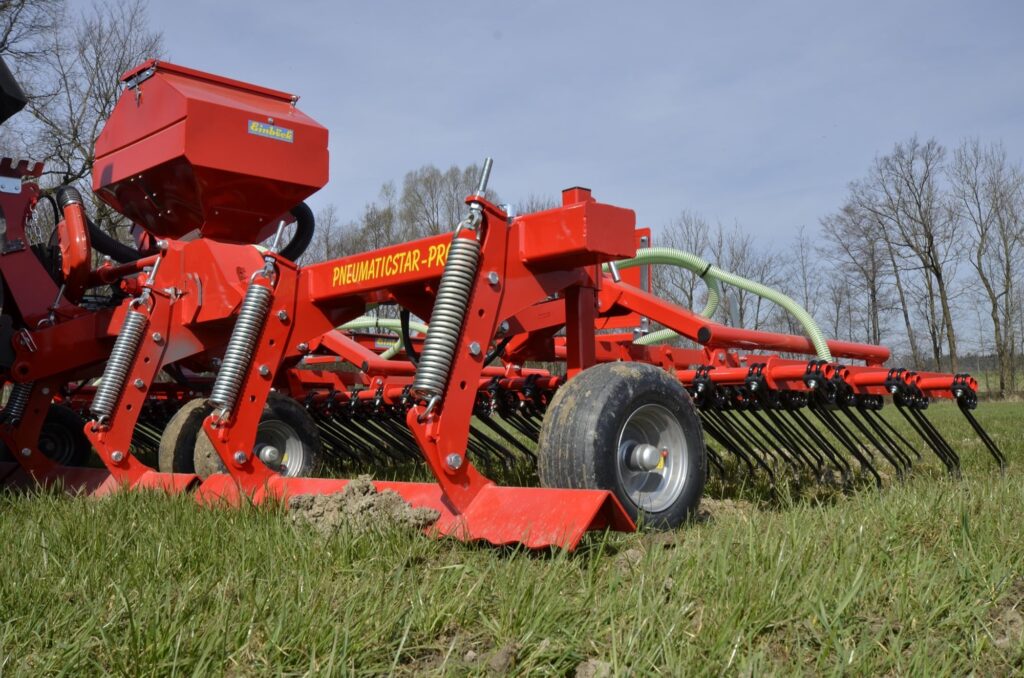

Pneumaticstar PRO MD levelling plates

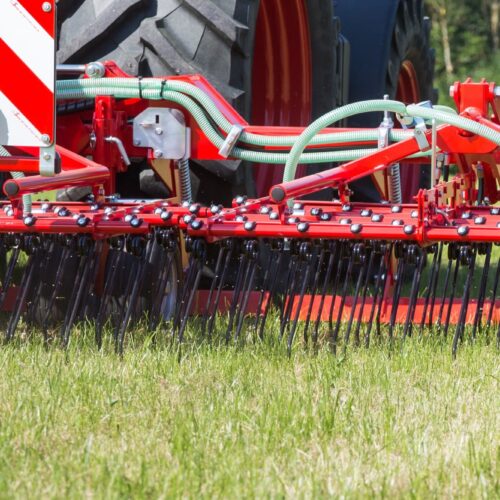

Pneumaticstar PRO MD hydraulic pressure

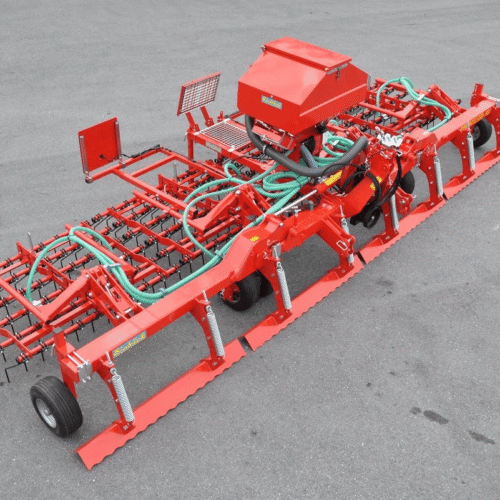

Pneumaticstar Pro depth wheels

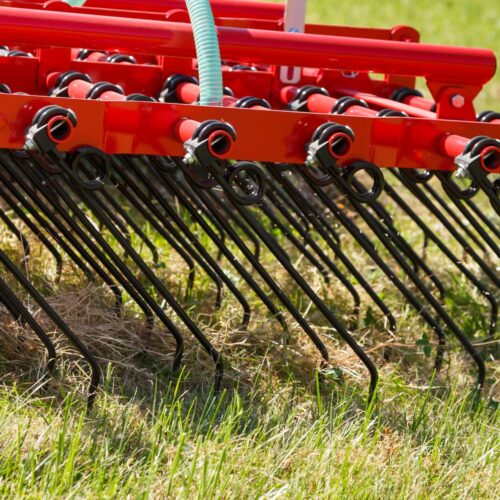

Pneumaticstar pro deflector plates
Pneumaticstar md drive
Grass manager line spacing

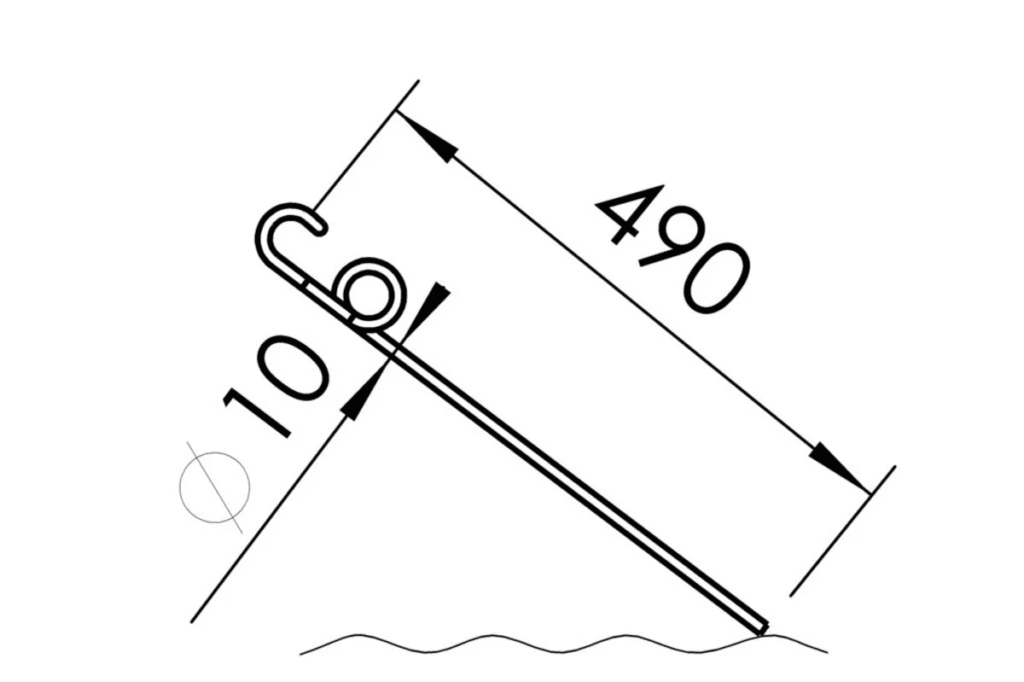

Grass manager 10 mm tines
Technical Data
- Lower and upper links are equipped with hardened bushings – mounting category CAT II

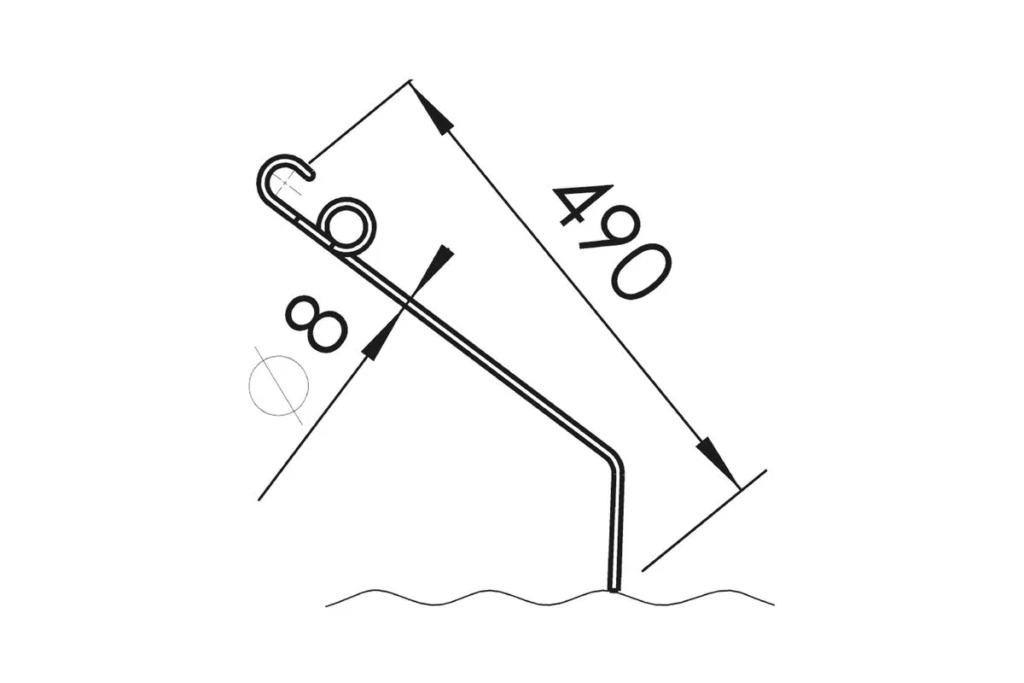

- Tines ø 8 mm / 0.31″, 490 mm / 19.29″ long, individually changeable
- Frame hydraulically foldable with single acting cylinder – on 6 m / 19.7 ft. machine

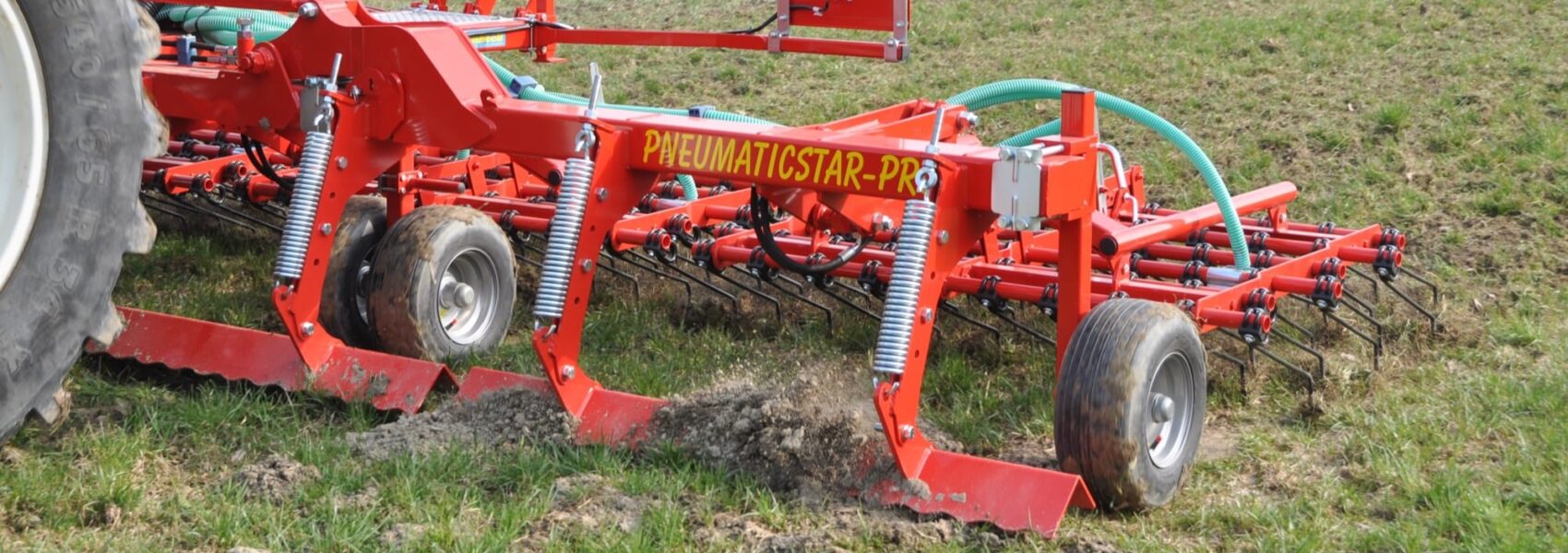

- Heavy, spring suspended front levelling bar (triangular) working in front of the support wheels
- Line spacing 2.5 cm / 1″
- Track width 200 cm / 6.6 ft.
- Tine tube with anti-rotation device
- Sections parallel guided with hydraulic level control (1 double acting hydraulic valve necessary)
- Parking support with filling steps
- Pneumatic seeder with stirring shaft and separate seeding roller section per hose
- Electric fan 12 volt (up to 6 m / 19.70 ft. working width)
- One Seeding roller with fine and one with coarse toothing
- Seeding roller can be changed without tools
- Tank made from sheet steel
- Calibration plate + calibration pan
- Tank volume 300 l with monitoring window + opening to fully empty the box (500 litre XXL-Version)
- Drive of seeding roller through bottom drive and variable adjustable oil bath gearbox
- Specially designed distribution plates with splash guard
- Transport width 3 m / 9.80 ft.
Options
- Protection against loss in case of tine breakage
- Retaining plate
- Mechanical jogging unit
- Hectare counter electronic
- 500 l tank
- Plastic tank instead of the standard steel tank
- Mechanical fan
- Hydraulic fan
- Electric adjustment of seeding quantity
- Airflow monitoring
- Alarm when seeding box is getting empty
- P-BOX MD – Seeding unit made from stainless steel
- Deflector plate made from stainless steel
- Warning signs with holder and LED-lights
