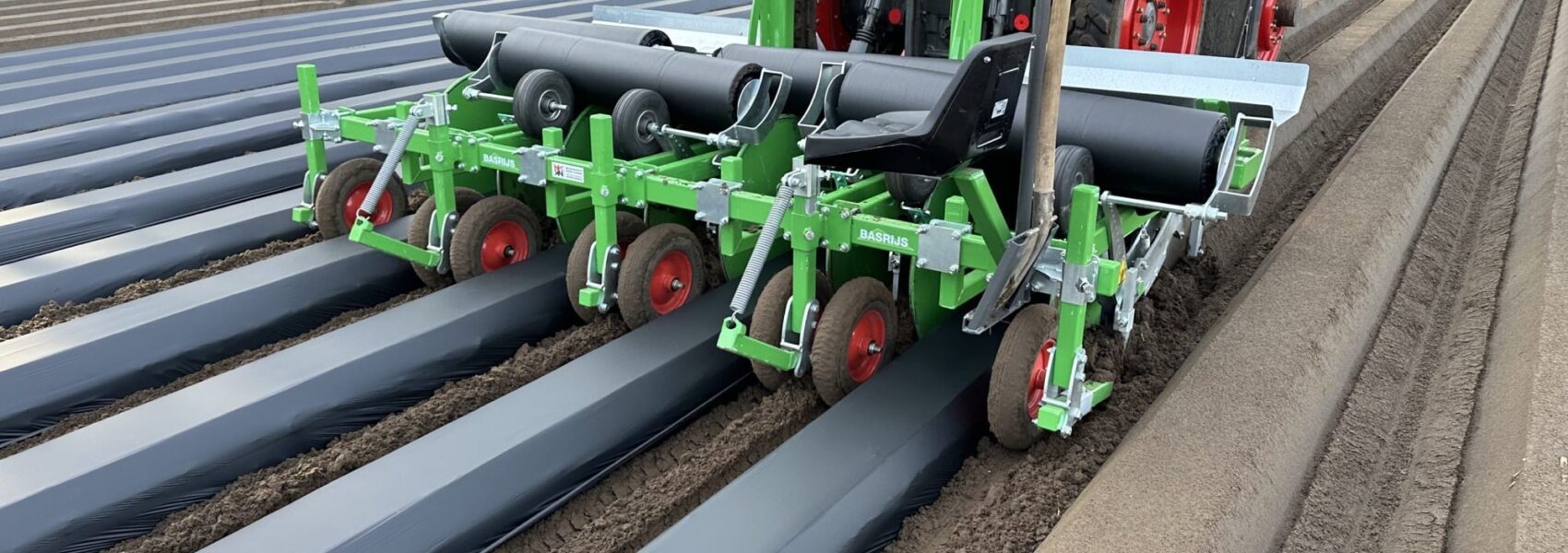

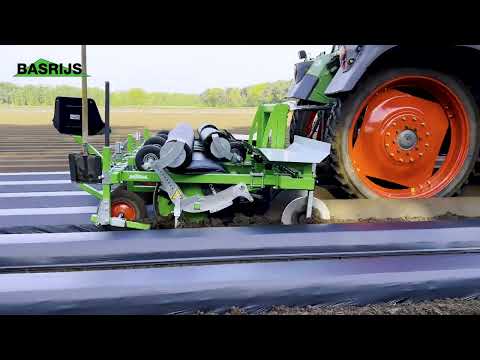

Foil Laying Machine BPL/I

The foil laying machine BPL/I is designed for laying various types of film over beds and ridges.

General Specifications

Capacity 5000 meters per hour

Optional

  • T-tape layer
  • Marker stitch wheel
  • Seats
  • Tines for breaking wheeltrack

Common Configurations

Model Number of beds Width of the bed Number of raised beds Row distance Width of ridge Linkage Weight Power requirement

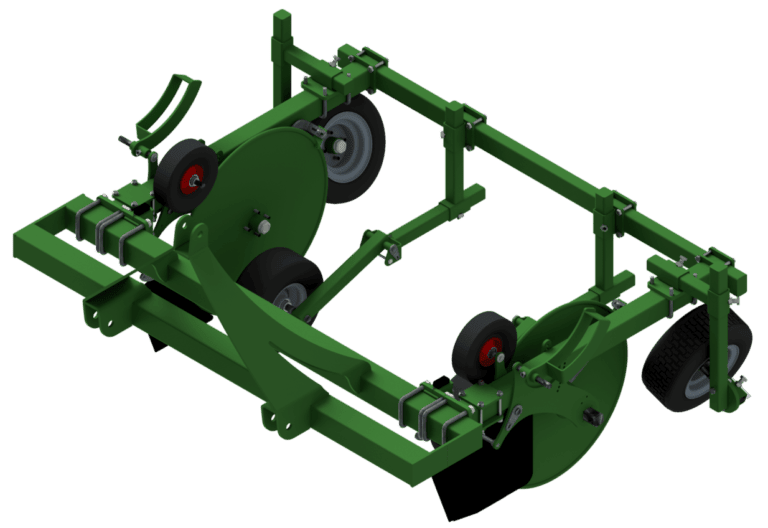

BPL\IF200 1 450 - 1300 mm N/A N/A N/A 3-Point linkage cat. 2 450 kg 50 hp

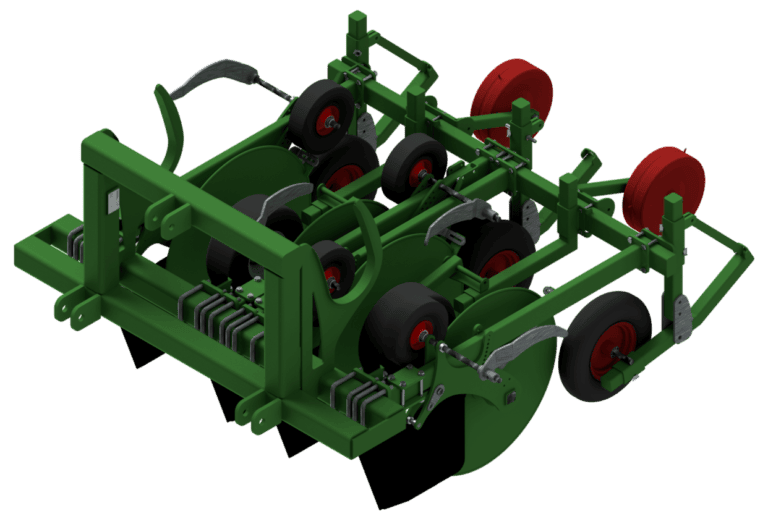

BPL\IF165 N/A N/A 2 750 mm 400 mm 3-Point linkage cat. 2 600 kg 70 hp
BPL\IF315 N/A N/A 4 750 mm 400 mm 3-Point linkage cat. 2 1200 kg 90 hp
