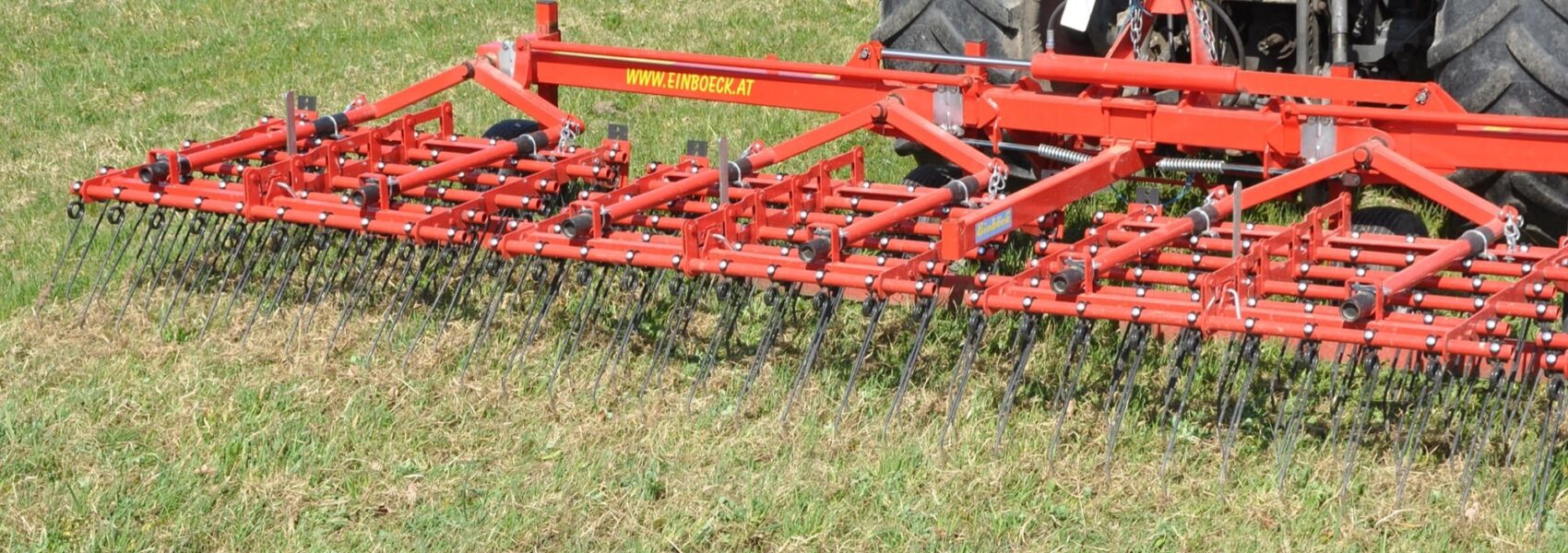

Grassland Weeder (GRASS-MANAGER)
- Increased vibration effect due to special tines and holder
- Central adjustment possibility of the tine position per field (additional equipment hydraulic adjustment)
- Stable and durable frame with support wheels
- Effective operation due to narrow line spacing of exact 2.5 cm / 1″
- Large selection of tines as options = the right tine for every job
- Optionally available front levelling plates

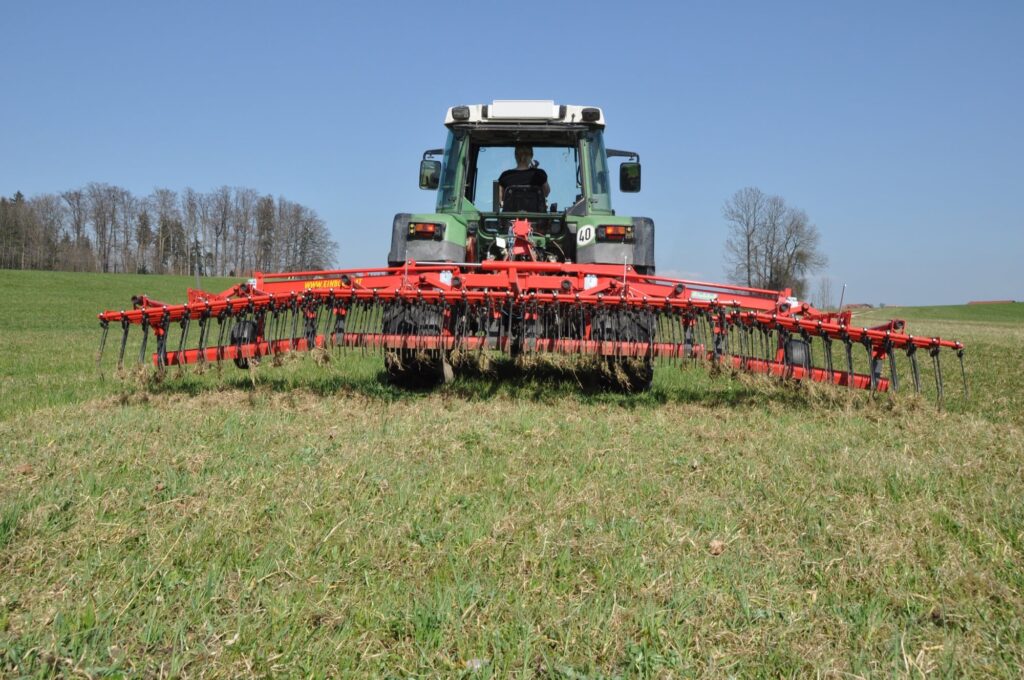

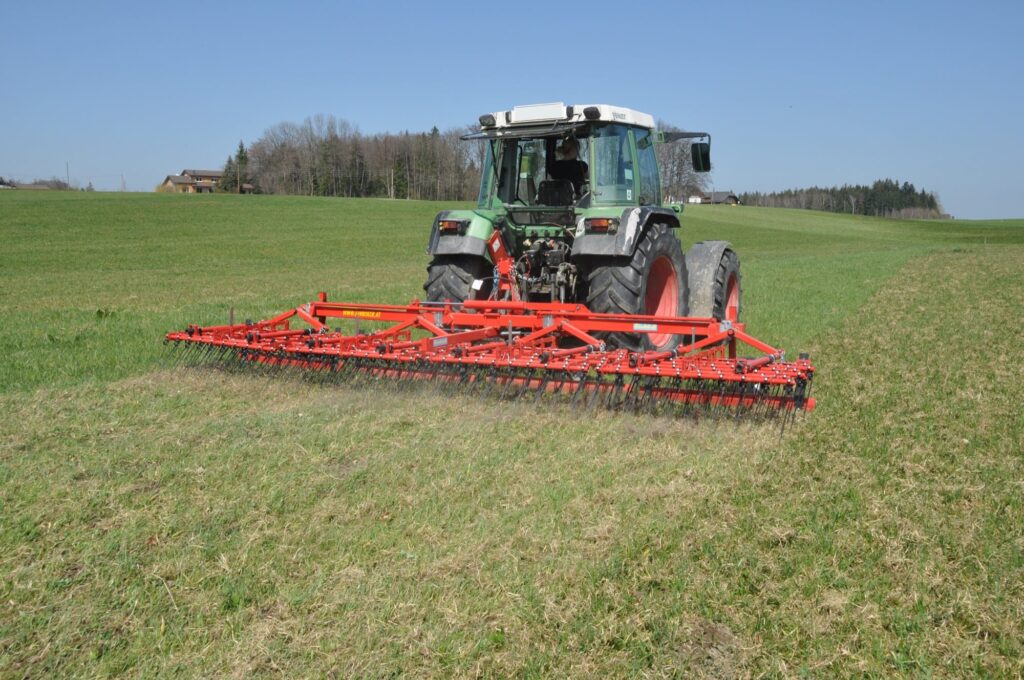

Even on healthy and balanced grassland, annual maintenance is essential. The long-established GRASS-MANAGER is specially designed for that purpose.
It aerates and dethatches the turf in addition to crushing plant residues, manures and mixing the material. The GRASS-MANAGER works the grassland with spring tines, loosening and aerating the turf.
The weeds in the upper layer of soil are rooted out, giving important grasses and herbs more light and space to grow. High productivity in combination with low power consumption reinforces the usage of the GRASS-MANAGER.
The tines are designed for long life and can be adjusted to suit the working angle. Due to their design, they maintain contact with the grassland even on rough terrain.
The GRASS-MANAGER is made for high working speeds and is very effective. It can be equipped with levelling boards for the distribution and levelling of molehills.
The support wheels run in front of the weeder sections and ensure accurate guidance.
The GRASS-MANAGER can be equipped with a pneumatic seed drill, resulting in the PNEUMATICSTAR.
The GRASS-MANAGER is designed with 8 mm tines for grassland care.
Advantages

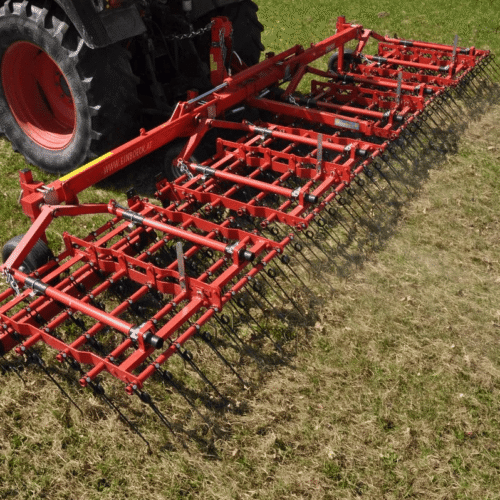

Stable operation

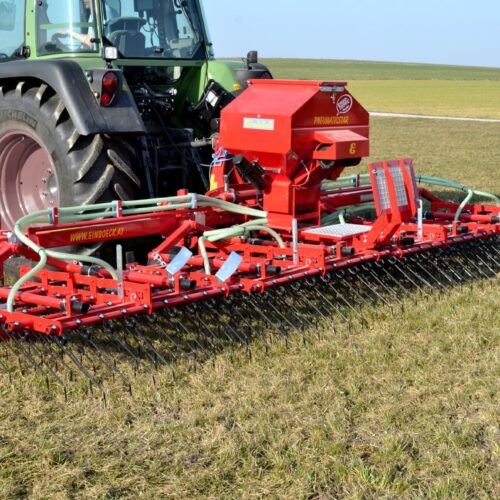

Simple mouting of seeder box

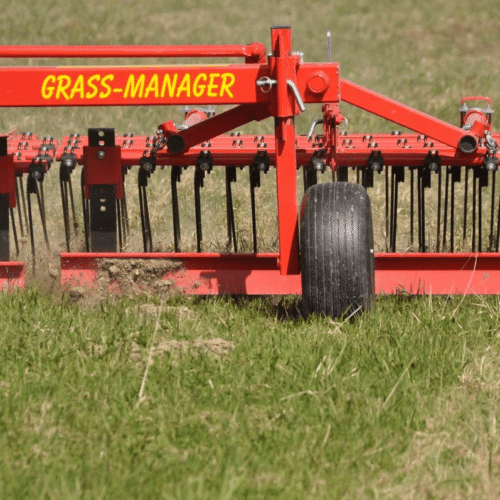

Rubber support wheels

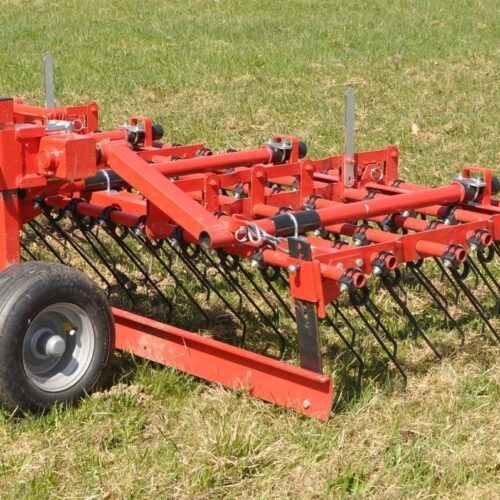

Exact tine position
Exact line spacing
Ø 8 mm, 490 mm long tines
Technical Data
- Tine 490mm long, Ø 8 mm
- Rubber support wheels for gentle operation
- Stop bar for perfect adoption to the surface
- Tine section holders protected by plastic
- Mechanical locking in transport position
Options

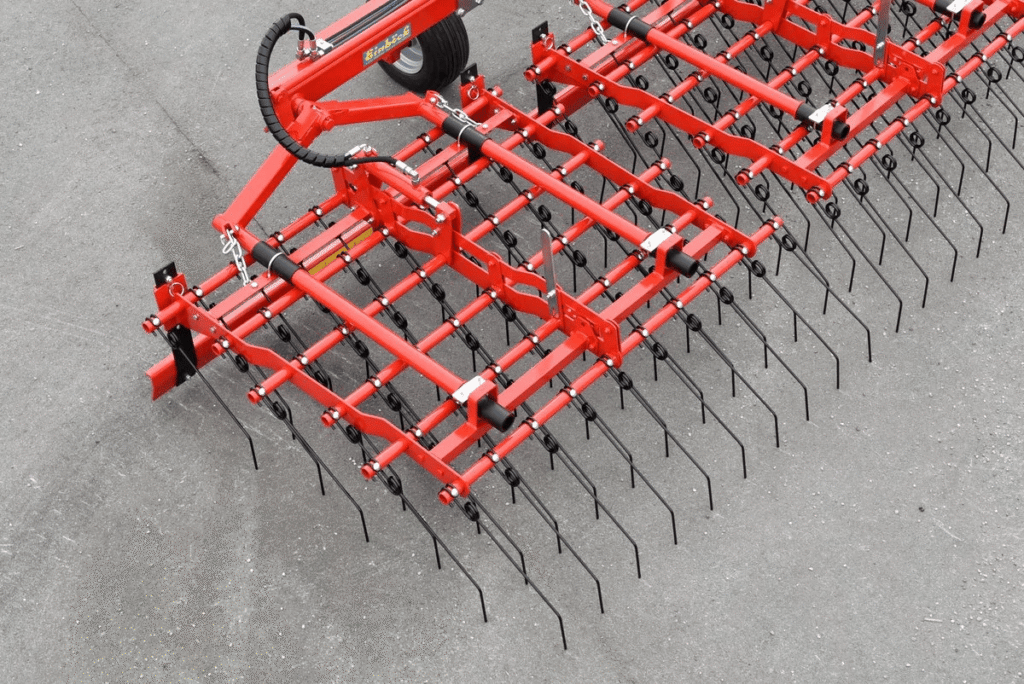

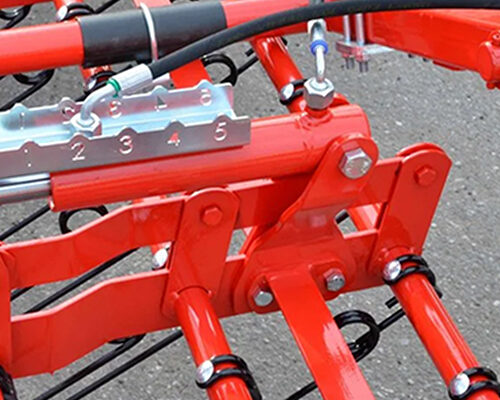

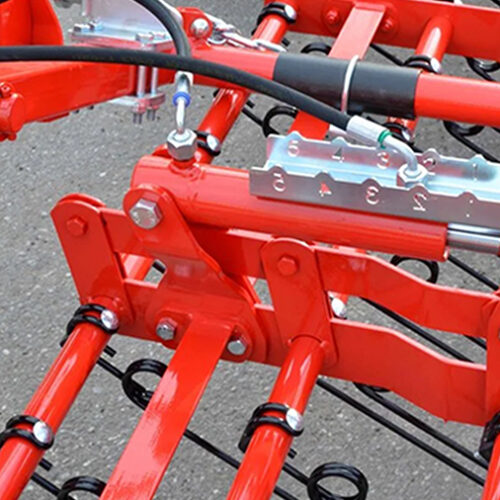

Hydraulic tine adjustment – perfect in changing soil conditions

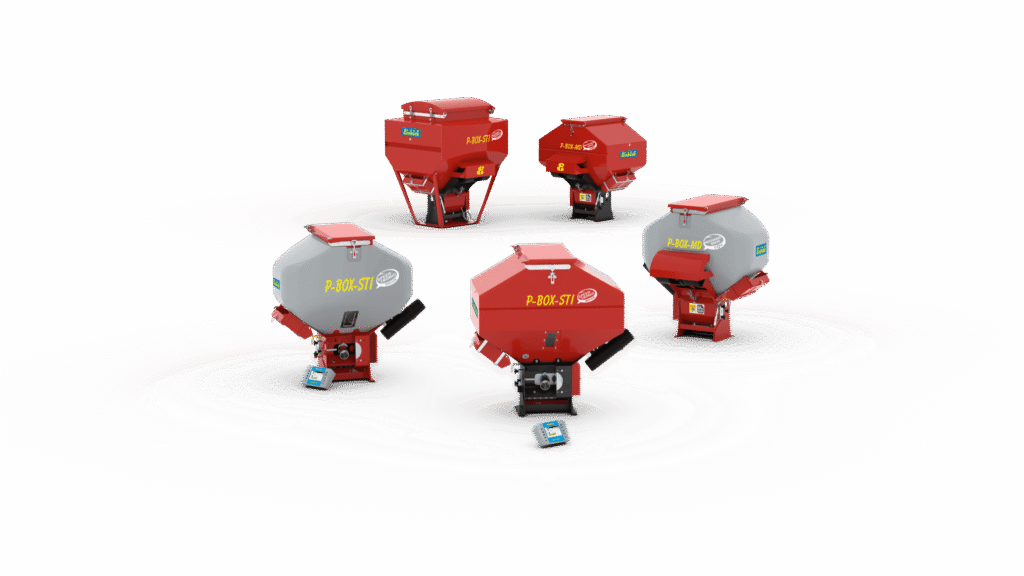

Pneumatic seeding box

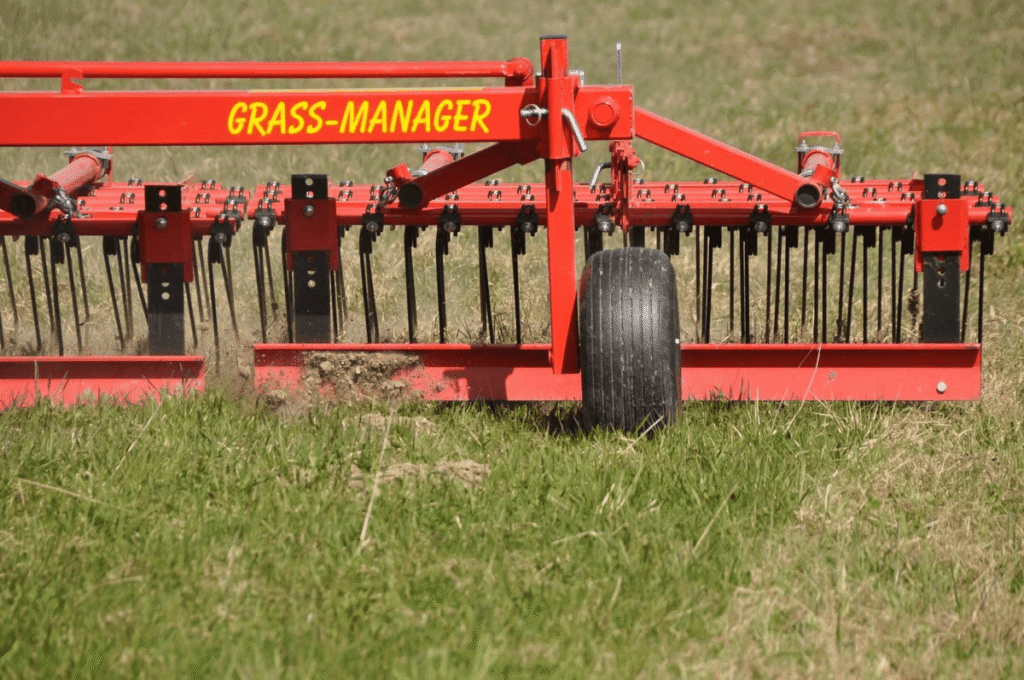

Levelling plate for excellent distribution and levelling of mole hills
Tines 490 mm / 19.3“ long, Ø 10 mm / 0.39“ instead of standard tine

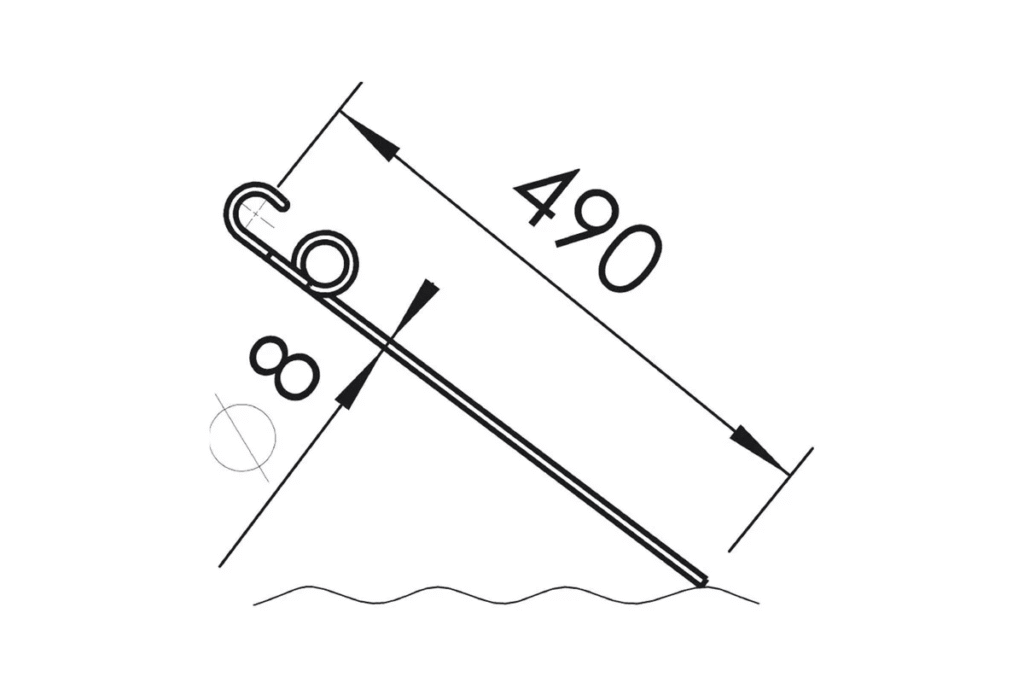

Tine 490 mm / 13.9” long STRAIGHT, Ø 8 mm / 0.31” instead of standard tine
Front mounting frame

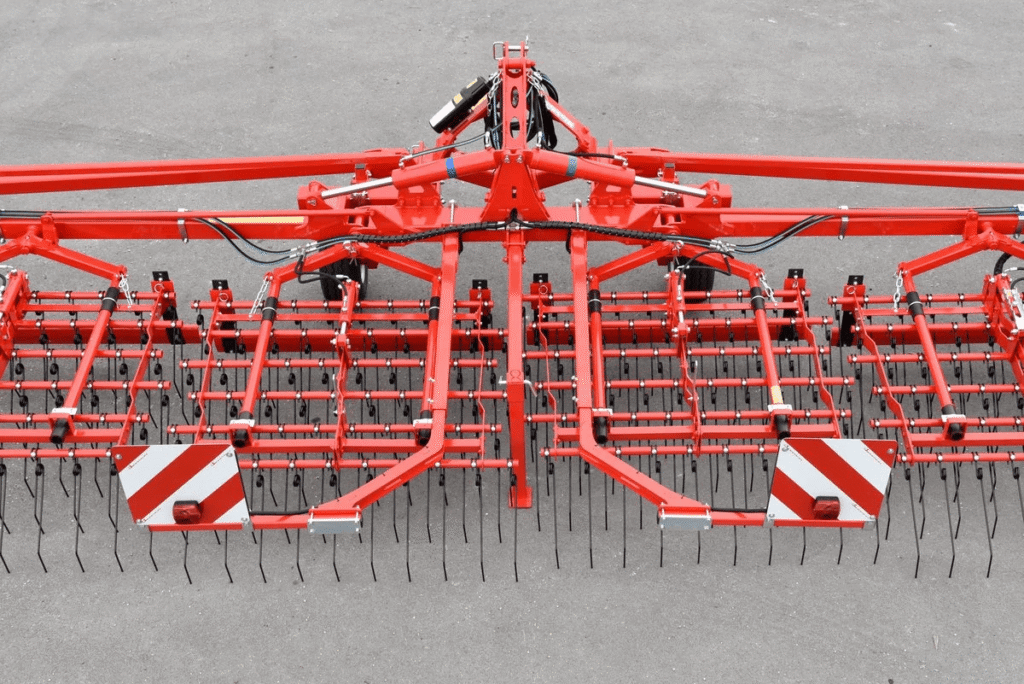

Warning signs with LED-lights

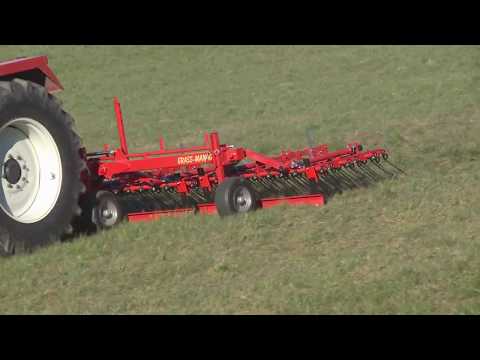

Media
