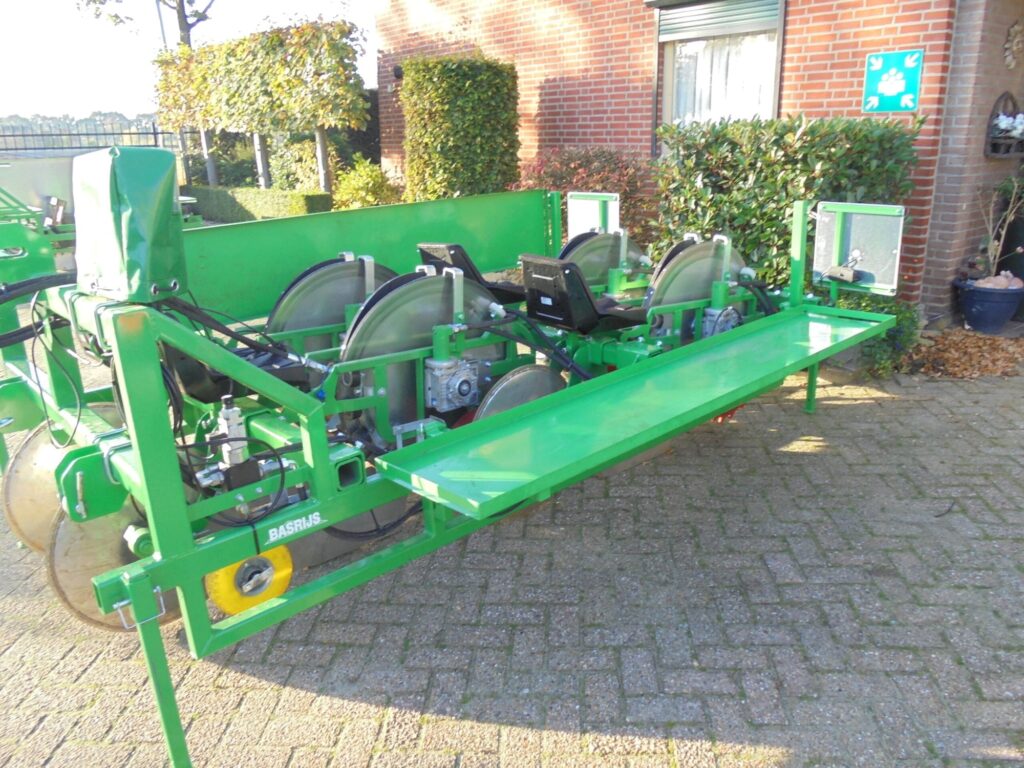

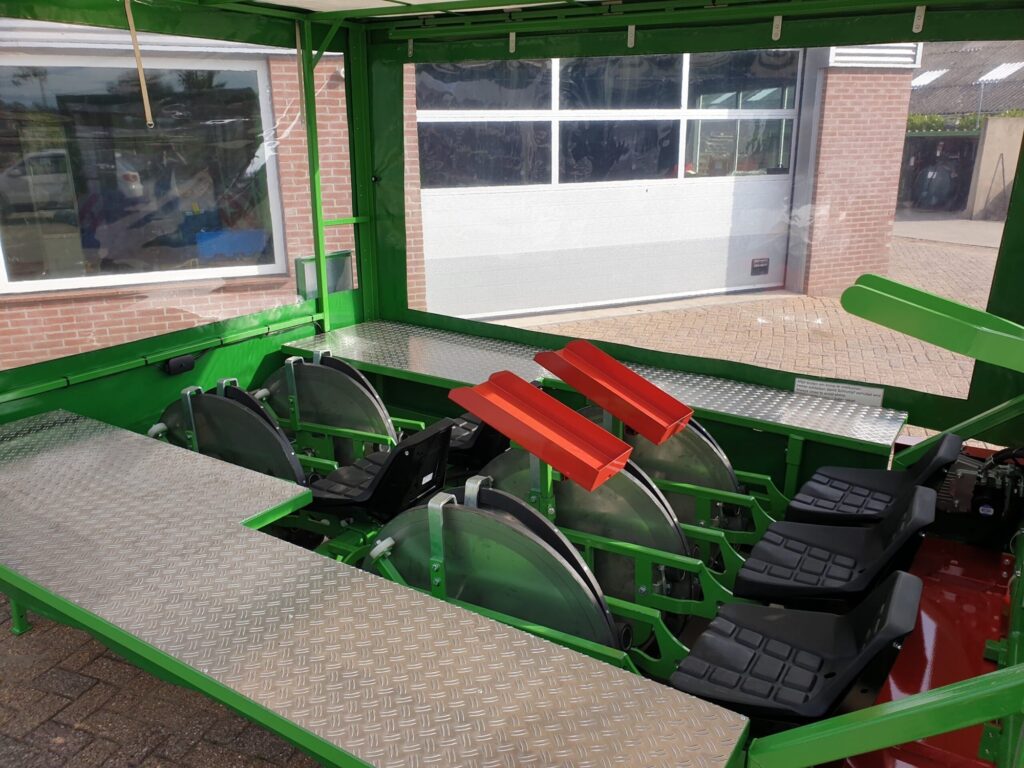

Disc Planter PE80

The disc planter PE80 is suitable for planting narrow plants such as young trees and forest/hedge planting.

General Specifications

Diameter of the plant discs 800 mm
Maximum plant height above the ground 40 cm
Minimum row distance for single frame 22.5 cm
Minimum row distance for tandem frame 45 cm
Planting depth 5-20 cm, pots up to P9
Plant spacing in the row 5 cm
Capacity 1000-2500 plants per person per hour

Optional

  • Various furrow openers
  • Furrow scrapers
  • Plant rack(s)
  • Crate rack(s)
  • Support wheels
  • Track markers
  • Coulter discs
  • Rippers
  • Electric plant distance control
  • Canopy

Common Configurations

Model Number of rows Row distance Weight Linkage Power requirement Hydraulics
BPM\FD160 5 25 cm 1400 kg 3-Point linkage cat. 2 90 hp 1 (single) acting valve, 20 l/min

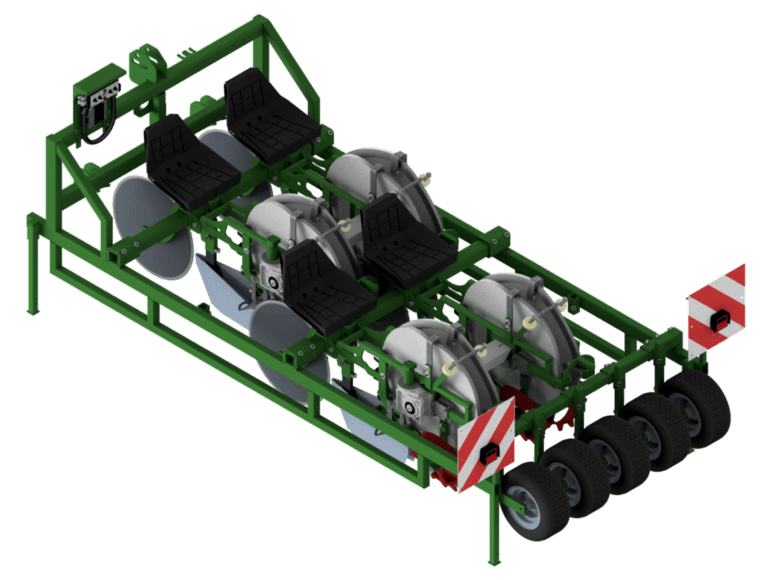

BPM\FD150 4 30 cm 1200 kg 3-Point linkage cat. 2 80 hp 1 (single) acting valve, 20 l/min
