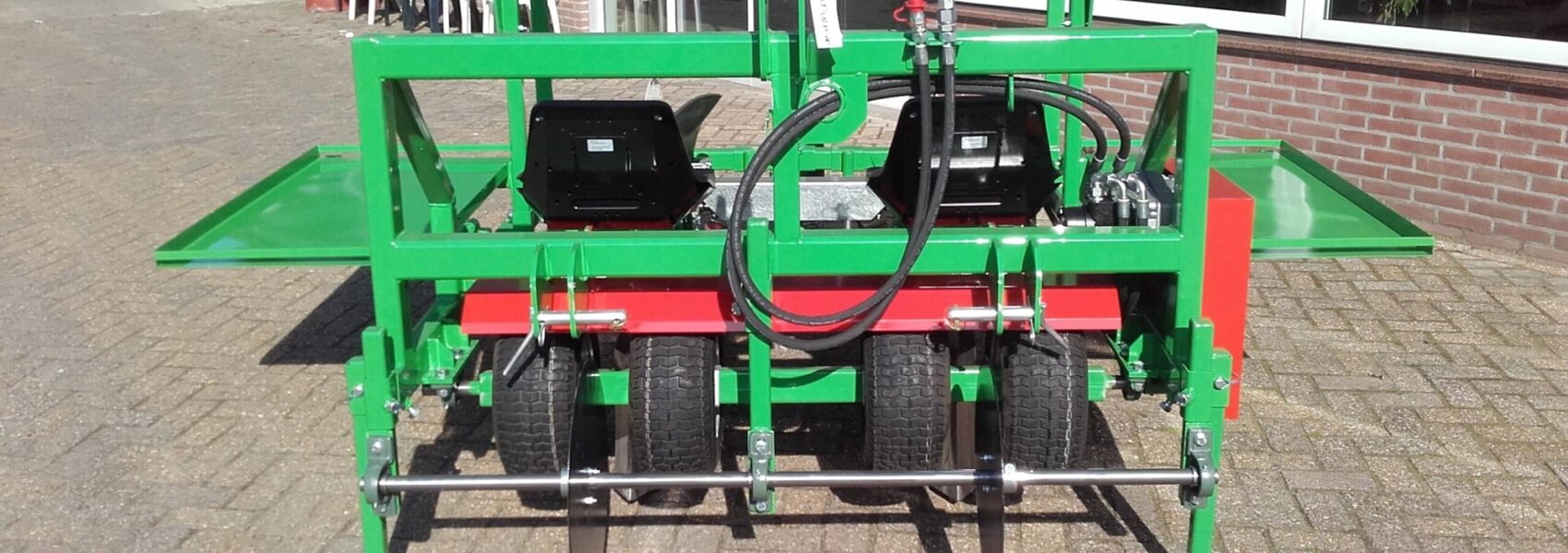

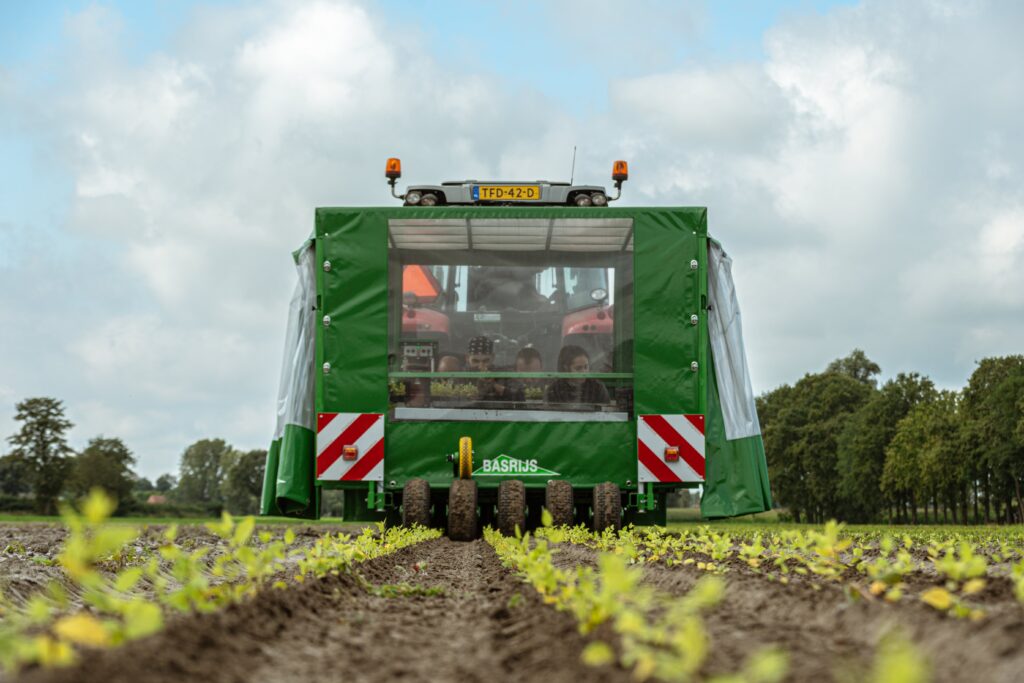

The disc planter PE70 is designed for planting fruit/vegetable crops and young trees.

General Specifications

Diameter of the plant discs 700 mm
Maximum plant height above the ground 35 cm
Minimum row distance for single frame 22.5 cm
Minimum row distance for tandem frame 45 cm
Planting depth 5-15 cm
Plant spacing in the row from 5 cm
Capacity 1000-2000 plants per person per hour

Optional

  • Various furrow openers
  • Furrow scrapers
  • Plant holders
  • Plant rack(s)
  • Crate rack(s)
  • Support wheels
  • Track markers
  • Coulter discs
  • Slotted discs
  • Rippers
  • Electric plant distance control

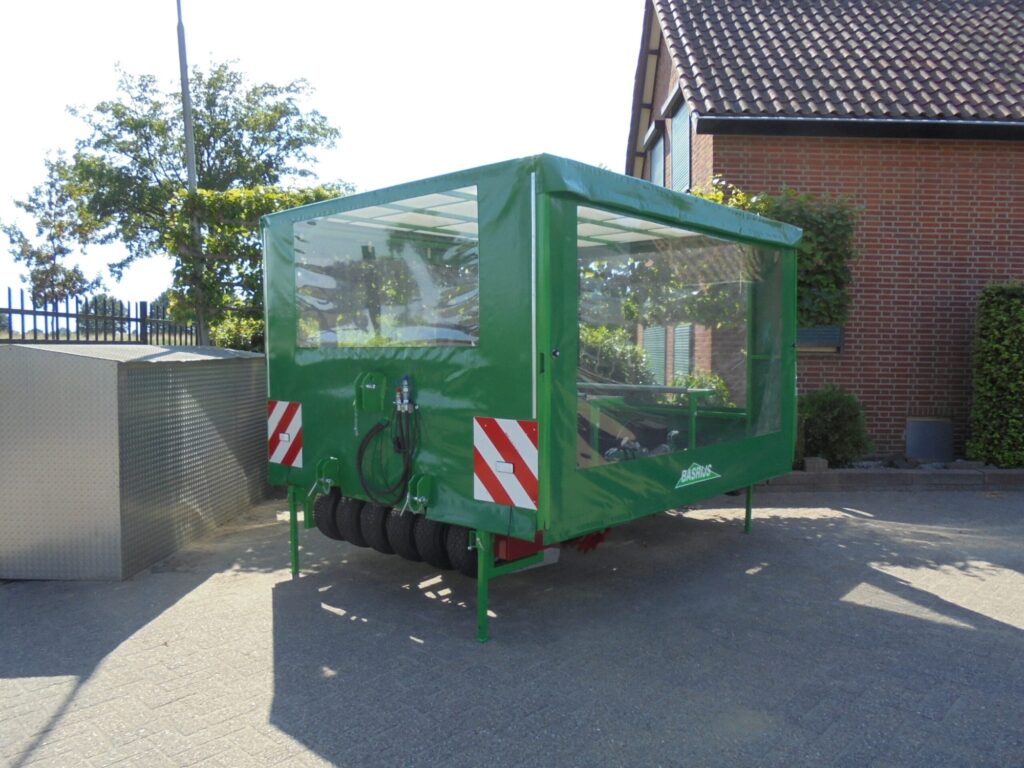

  • Canopy

Common Configurations

Model Number of rows Row distance Weight Linkage Power requirement Hydraulics

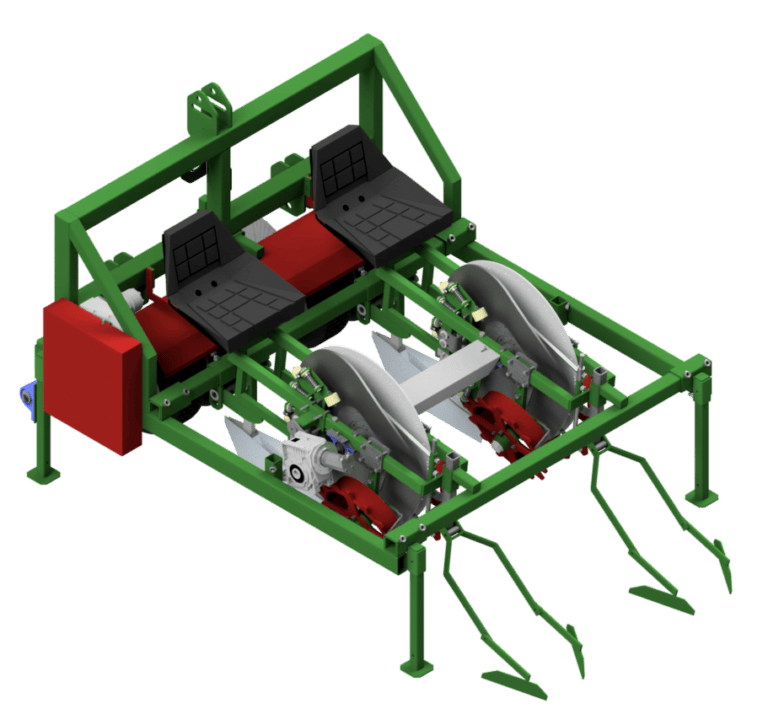

BPSFE150 2 35 cm 600 kg 3-Point linkage cat. 2 60 hp 1 (single) acting valve, 20 l/min

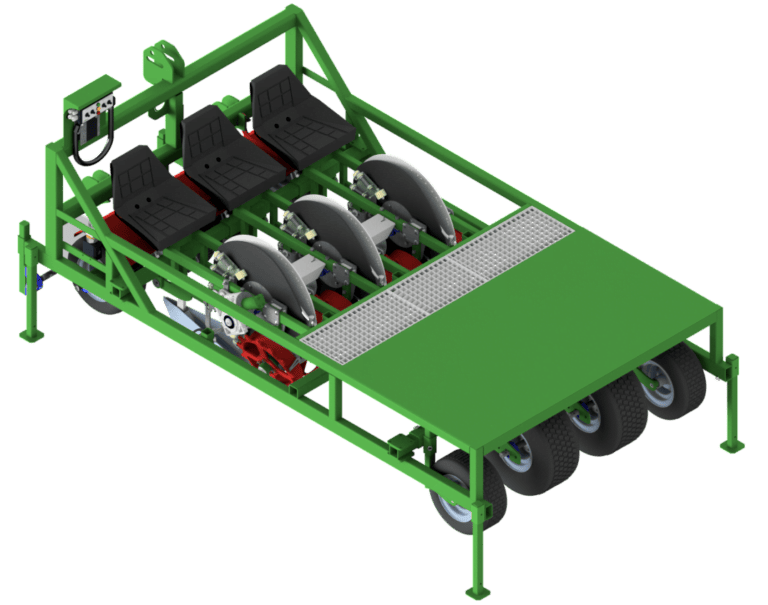

BPSFE160 3 45 cm 700 kg 3-Point linkage cat. 2 80 hp 1 (single) acting valve, 20 l/min

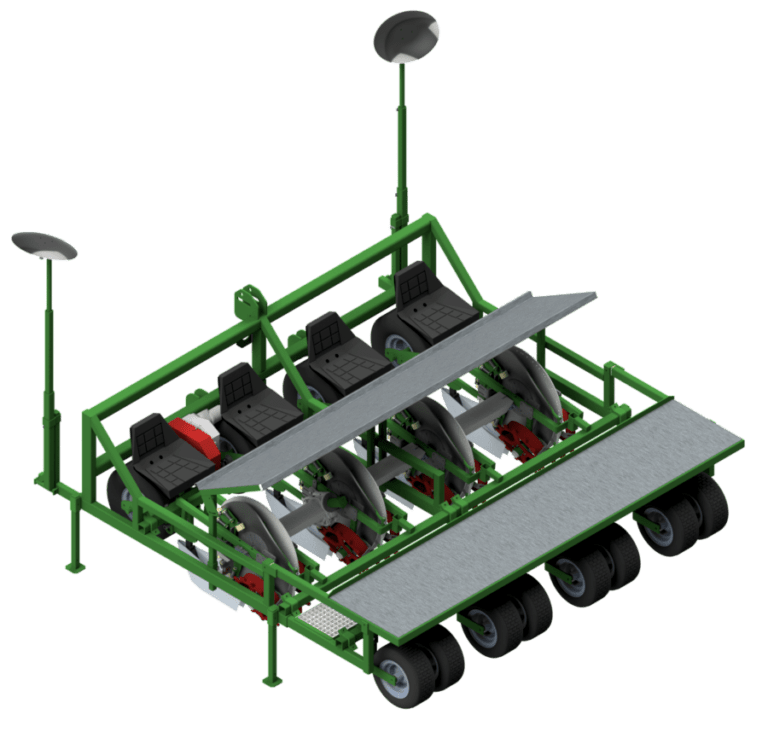

BPSFE300 4 60 cm 1200 kg 3-Point linkage cat. 2 80 hp 1 (single) acting valve, 20 l/min

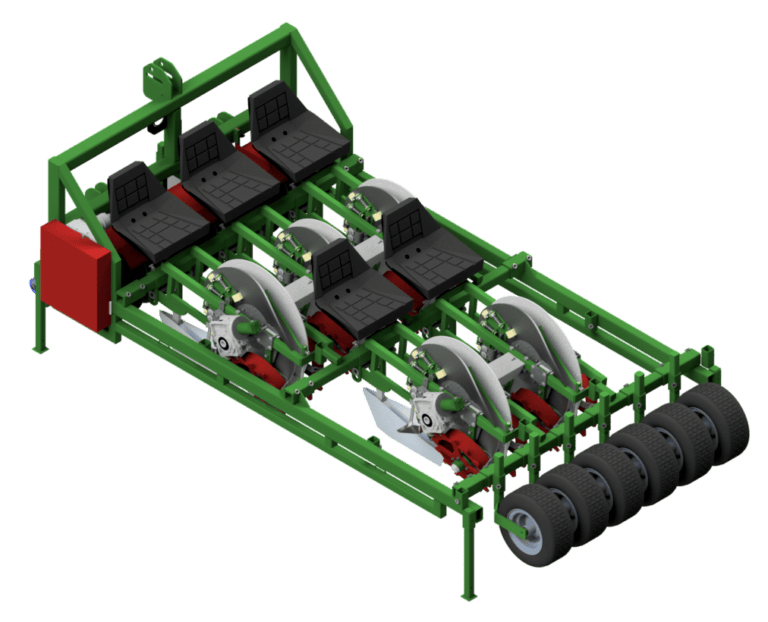

BPSFD150 5 22.5 cm 1100 kg 3-Point linkage cat. 2 80 hp 1 (single) acting valve, 20 l/min
