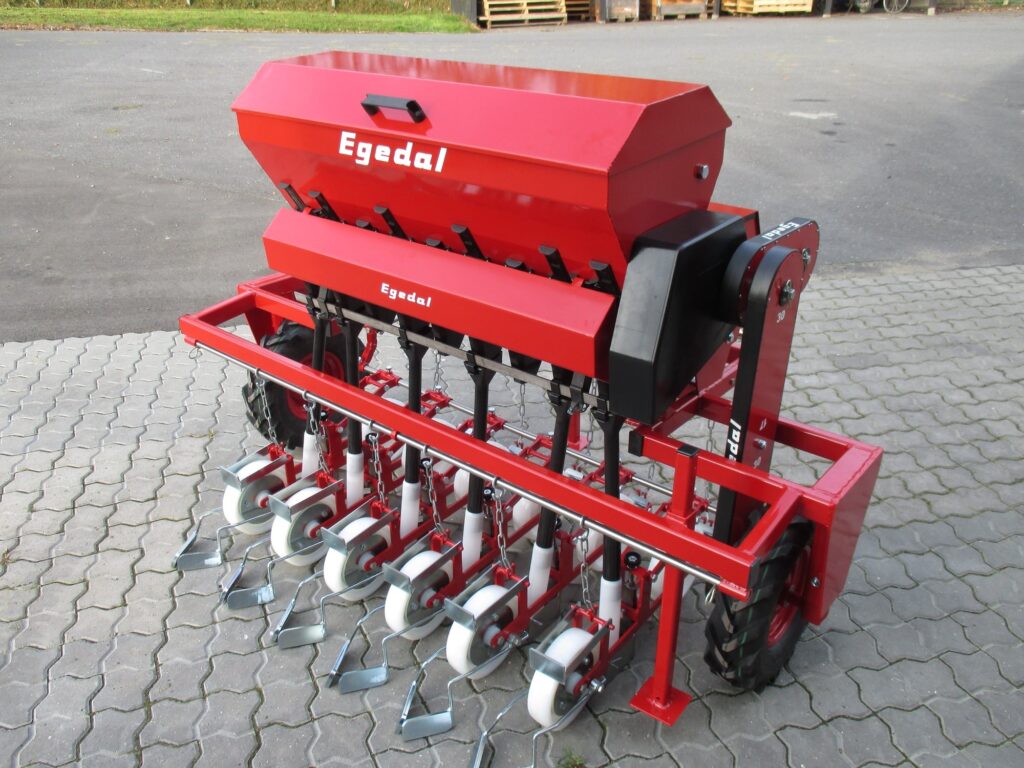

Bed Sowing Machine Type 83
- Precise sowing of small seeds
- Adjustable seeding rate
- Seeding units with depth and pressure wheels
- Versatile application
For row sowing or broadcasting small seeds, such as various conifers, rose species, as well as larger seeds like cherries and beech (maximum diameter approx. 8 mm). Sows clean seeds with 160 adjustable gear settings via gearbox and gear cassette. Equipped with seeding units featuring depth and pressure wheels. Standard three-point linkage.
Technical Data
| Number of rows | Seeding depth | Coulter width | Working width | Track width | Weight | Power requirements |
|---|---|---|---|---|---|---|
| 4 | 0-50 mm | 50 mm | 1100 mm | 1500 mm | 250 kg | From 25 Kw |
| 5 | 0-50 mm | 50 mm | 1100 mm | 1500 mm | 262 kg | From 25 Kw |
| 6 | 0-50 mm | 50 mm | 1100/1200 mm | 1500/1600 mm | 280 kg | From 25 Kw |
| 7 | 0-50 mm | 50 mm | 1100/1400 mm | 1500/1800 mm | 295 kg | From 25 Kw |
| 8 | 0-50 mm | 50 mm | 1100/1400 mm | 1500/1800 mm | 330 kg (330 lbs) | From 25 Kw |
